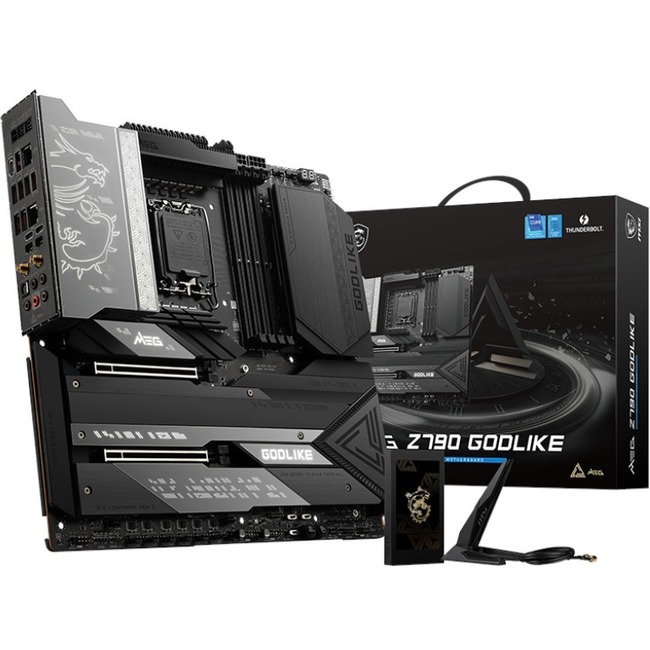

MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 6 x SATA Interfaces
| $1,335.36 |
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with
Manufacturer:
MSI
Item:
Z790GODLIKE
UPC Code:
824142305737
Our Part #
08JA81
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $66.77 |
$1,335.36EA
Availability
In Stock
You may be also interested
Product description
MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 6 x SATA Interfaces
Specifications
Bluetooth Standard
Bluetooth 5.3
Chipset Model
Z790
Depth
12"
Form factor
Extended ATX
Graphics Controller Manufacturer
AMD
Maximum Memory Supported
128 GB
Memory form factor
DIMM
Memory form factor
UDIMM
Memory Speed Supported
7400 MHz
Memory Speed Supported
6000 MHz
Memory Speed Supported
5200 MHz
Memory Speed Supported
6600 MHz
Memory Speed Supported
6200 MHz
Memory Speed Supported
7600 MHz
Memory Speed Supported
6400 MHz
Memory Speed Supported
5800 MHz
Memory Speed Supported
4800 MHz
Memory Speed Supported
7200 MHz
Memory Speed Supported
5000 MHz
Memory Speed Supported
5600 MHz
Memory Speed Supported
7800 MHz
Memory Speed Supported
5400 MHz
Memory Speed Supported
7000 MHz
Memory Speed Supported
6800 MHz
Number of M.2 Interfaces
7
Number of memory slots
4
Number of Memory Slots
4
Number of SATA Interfaces
6
Number of Total Expansion Slots
2
Onboard Video
CPU Dependent Video
PCI Express Standard
PCI Express 5.0
Processor Generation Supported
12th Gen
Processor Generation Supported
13th Gen
Processor socket
Socket LGA-1700
Processor Socket
Socket LGA-1700
Processor Supported
Celeron
Processor Supported
Pentium Gold
Processor Supported
Core
Product type
Gaming Desktop Motherboard
RAID levels
5
RAID levels
0
RAID levels
1
RAID levels
10
S/PDIF
Yes
UPC Alternates
824142305737
Width
12.2"
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax
Audio Channels
7.1
Chipset Manufacturer
Intel
Controller Type
Serial ATA/600
Depth
12"
Form factor
Extended ATX
Manufacturer
MSI
Manufacturer Part Number
Z790GODLIKE
Manufacturer Website Address
http://www.msi.com
Marketing Information
Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.
Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling making them run faster.
The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws provides the easiest way for M.2 installation
The patented magnetic M.2 Shield Frozr design enables true "wire-less" RGB function enhances the installation process and maximizes the storage performance.
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds 8K display support Daisy-Chaining Multi-Port Accessory Architecture and USB 4.0 Compliant.
The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function but also allows system operation and customization with touch control.
ILLUSION LIGHTING
MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE but also reinforce the DIY and MEG spiri
Memory form factor
UDIMM
Memory form factor
DIMM
Memory Technology
DDR5 SDRAM
Package Contents
- MEG Z790 GODLIKE Gaming Desktop Motherboard
- M-Vision Dashboard
- Wi-Fi Antenna
- USB Drive
- M-Vision Cable
- 3 x Sata Cables
- 2 x Thermistor Cables
- 1 to 2 RGB LED Extension Y Cable
- ARGB LED Extension Cable
- 1 to 3 ARGB gen 2 Extension Cable
- 2 x dp to Mini dp Cable
- Ez Front Panel Cable
- Metal Dragon Badge
- M.2 Screw/Standoff Set/Ez m.2 Clips
- Cable Stickers
- Quick Installation Guide
- European Union Regulatory Notice
Product Line
MEG
Product Model
Z790 GODLIKE
Product Name
MEG Z790 GODLIKE Gaming Desktop Motherboard
Product Type
Gaming Desktop Motherboard
RAID Levels
1
RAID Levels
10
RAID Levels
0
RAID Levels
5
Total Number of USB Ports
8
Width
12.2"
