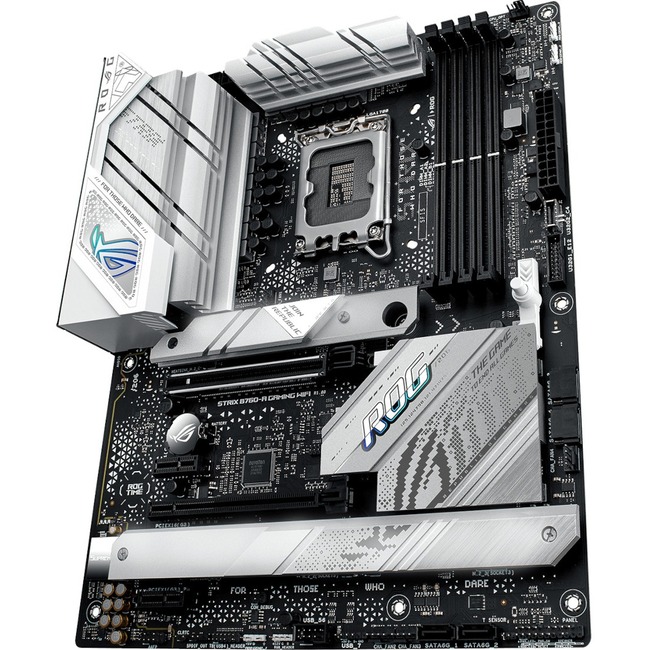

Asus ROG Strix STRIX B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
Asus ROG Strix STRIX B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Celeron, Core, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
| $273.18 |
- Celeron processors supported for faster, dependable performance and better access to data and information
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Manufacturer:
ASUS Computer International
Item:
ROG STRIX B760-A GAMING WIFI
UPC Code:
197105114067
Our Part #
43201513
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $13.66 |
$273.18EA
Availability
In Stock
You may be also interested
Product description
Asus ROG Strix STRIX B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Celeron, Core, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Celeron, Core, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Specifications
Bluetooth Standard
Bluetooth 5.3
Chipset Model
B760
Depth
9.6"
Form factor
ATX
HDMI Version
2.1
HDMI version
2.1
Maximum Memory Supported
128 GB
Memory form factor
DIMM
Memory form factor
UDIMM
Memory Speed Supported
7400 MHz
Memory Speed Supported
5000 MHz
Memory Speed Supported
5800 MHz
Memory Speed Supported
7000 MHz
Memory Speed Supported
6800 MHz
Memory Speed Supported
6200 MHz
Memory Speed Supported
5600 MHz
Memory Speed Supported
7600 MHz
Memory Speed Supported
7800 MHz
Memory Speed Supported
5400 MHz
Memory Speed Supported
6000 MHz
Memory Speed Supported
6600 MHz
Memory Speed Supported
6400 MHz
Memory Speed Supported
5200 MHz
Memory Speed Supported
4800 MHz
Memory Speed Supported
7200 MHz
Number of memory slots
4
Number of Memory Slots
4
Number of Onboard USB 2.0 Ports
3
Number of PCI Express x1 Slots
2
Onboard Video
CPU Dependent Video
PCI Express Standard
PCI Express 5.0
PCI Express Standard
PCI Express 3.0
Processor Generation Supported
13th Gen
Processor Generation Supported
12th Gen
Processor socket
Socket LGA-1700
Processor Socket
Socket LGA-1700
Processor Supported
Pentium Gold
Processor Supported
Core
Processor Supported
Celeron
Product type
Gaming Desktop Motherboard
RAID levels
5
RAID levels
1
RAID levels
0
RAID levels
10
S/PDIF
Yes
Total Number of Onboard USB Ports
6
UPC Alternates
197105114067
Width
12"
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax
Audio Channels
7.1
Brand Name
Asus ROG
Chipset Manufacturer
Intel
Controller Type
Serial ATA/600
Depth
9.6"
Environmental Certification
RoHS
Form factor
ATX
Manufacturer
ASUS Computer International
Manufacturer Part Number
ROG STRIX B760-A GAMING WIFI
Manufacturer Website Address
http://usa.asus.com
Marketing Information
Just like its formidable sibling the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform with PCIE 5.0 USB 3.2 GEN 2x2 and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5 bringing even more bandwidth to the table for games and apps.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking a plethora of USB I/O and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots all featuring robust heatsinks to maximize performance.
Marketing Information
Just like its formidable sibling the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform with PCIE 5.0 USB 3.2 GEN 2x2 and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5 bringing even more bandwidth to the table for games and apps.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking a plethora of USB I/O and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots all featuring robust heatsinks to maximize performance.
Marketing Information
Just like its formidable sibling the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform with PCIE 5.0 USB 3.2 GEN 2x2 and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5 bringing even more bandwidth to the table for games and apps.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking a plethora of USB I/O and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots all featuring robust heatsinks to maximize performance.
Memory form factor
UDIMM
Memory form factor
DIMM
Memory Technology
DDR5 SDRAM
Package Contents
- STRIX B760-A GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 1 x M.2 Rubber Packages
- 1 x User guide
Product Line
Strix
Product Model
STRIX B760-A GAMING WIFI
Product Name
STRIX B760-A GAMING WIFI Gaming Desktop Motherboard
Product Type
Gaming Desktop Motherboard
RAID Levels
1
RAID Levels
0
RAID Levels
5
RAID Levels
10
Total Number of USB Ports
9
Width
12"
