Black Box KVXLCF-200 KVM Extender
Black Box KVXLCF-200 KVM Extender - 3 Computer(s) - 3 Local User(s) - 98425.20 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 5 x USB - 6 x DVI - 5 V DC Input Voltage - Desktop - TAA Compliant
| $1,077.38 | Retail $1,349.00 |
- DVI-I/VGA video resolution up to 1920x1200 at 60Hz over Fiber optic
- Supports DVI-I video and VGA (using adapter)
- Supports EDID pass-through
- Local and remote units connect at distances of up to 330 feet (100m) using two standard CAT5e cables
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local DVI port loopback for monitoring on transmitter (TX) unit
Manufacturer:
Black Box Corporation
Item:
KVXLCF-200
UPC Code:
822088144014
Our Part #
43211603
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $53.87 |
$1,077.38EA
$1,349.00
$1,349.00
Availability
In Stock
Product description
Black Box KVXLCF-200 KVM Extender - 3 Computer(s) - 3 Local User(s) - 98425.20 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 5 x USB - 6 x DVI - 5 V DC Input Voltage - Desktop - TAA Compliant
3 Computer(s) - 3 Local User(s) - 98425.20 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 5 x USB - 6 x DVI - 5 V DC Input Voltage - Desktop - TAA Compliant
Specifications
Connectivity technology
Wired
Country of origin
Taiwan
Form factor
Desktop
Input voltage
5 V DC
Maximum operating distance
98425.20 ft
Maximum video resolution
1920 x 1200
Microphone
Yes
Number of DVI Ports
6
Product type
KVM Extender
Transmitter Depth
3.27"
Transmitter depth
3.27"
Transmitter height
1.71"
Transmitter Height
1.71"
Transmitter Weight (Approximate)
1.12 lb
Transmitter Width
7.09"
Transmitter width
7.09"
UPC Alternates
822088144014
Brand Name
Black Box
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Form factor
Desktop
Graphic Mode
WUXGA
Input voltage
5 V DC
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
KVXLCF-200
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The KVX DVI-I Dual-Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used fiber type and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready to use right out of the box. If your connections require VGA extension simply add a DVI to a VGA converter such as VA-DVII-VGA or DVI to a VGA converter cable such as EVNDVI01-0006.
You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations.
KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution.
KVX Dual Head also includes local video allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs.
This extender is TAA compliant and backed by free lifetime technical support. KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust dirt and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data such as financial and personal information safe in a heavily secured data center while still allowing remote access to users.
Maximum Operating Distance
98425.20 ft
Maximum Video Resolution
1920 x 1200
Microphone
Yes
Number of Computers Supported
3
Number of USB Ports
5

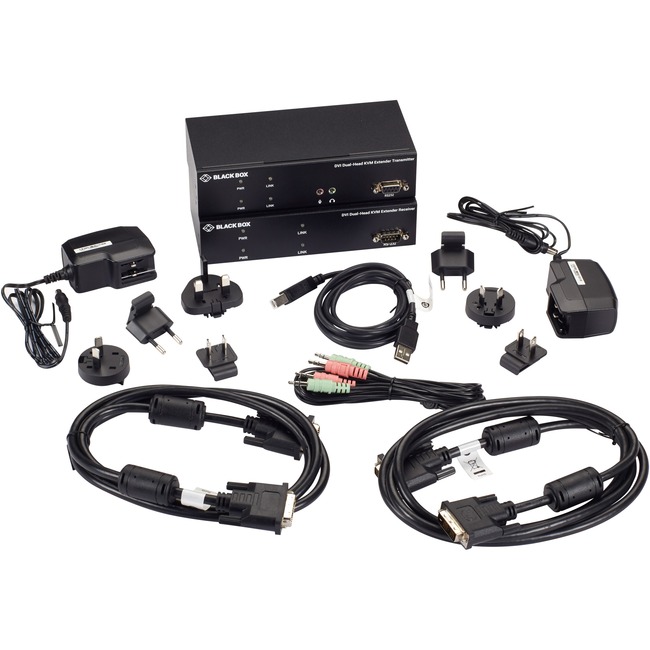

Package Contents
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V 2A Power Supplies (includes US EU UK plug types)
- 2 x DVI-D Cables M/M 1.8m (6 ft.)
- 1 x USB Type A to B Cable M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
Product Name
KVXLCF-200 KVM Extender
Product Series
KVX
Product Type
KVM Extender
