Vaddio OneLINK System for Sony & Panasonic HDMI Cameras
Vaddio OneLINK System for Sony & Panasonic HDMI Cameras - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable
| $1,821.05 | Retail $2,213.00 |
- Quick, clutter-free camera installation - power, control, video, and network connectivity over single cable
- Extends camera installation distance up to 328 ft. (100 m) using Cat-6 cable; 230 ft (70 m) using Cat-5e
- Passes uncompressed HDMI® video up to 2160p/29.97
- Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
- Compatible with legacy RoboSHOT HDMI and other HDMI cameras
- Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras
Manufacturer:
Legrand Group
Item:
999-9530-000
UPC Code:
840077502072
Our Part #
09LT48
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $91.05 |
$1,821.05EA
$2,213.00
$2,213.00
Availability
In Stock
You may be also interested
Product description
Vaddio OneLINK System for Sony & Panasonic HDMI Cameras - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable
1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable
Specifications
Connectivity technology
Wired
Country of origin
United States
Form factor
Wall Mountable
Maximum operating distance
328.08 ft
Maximum video resolution
3840 x 2160
Network (RJ-45)
Yes
Product type
Video Extender Transmitter/Receiver
Receiver Depth
6"
Receiver depth
6"
Receiver height
1.72"
Receiver Height
1.72"
Receiver Weight (Approximate)
1.55 lb
Receiver Width
8.38"
Receiver width
8.38"
Supported video modes
2160p
Transmitter depth
1.24"
Transmitter Depth
1.24"
Transmitter Height
3.86"
Transmitter height
3.86"
Transmitter Weight (Approximate)
8.85 oz
Transmitter width
4.31"
Transmitter Width
4.31"
UPC Alternates
840077502072
Brand Name
Vaddio
Connectivity technology
Wired
Country of origin
United States
Form factor
Wall Mountable
Graphics Modes
4K
Manufacturer
Legrand Group
Manufacturer Part Number
999-9530-000
Manufacturer Website Address
http://www.legrand.us
Marketing Information
OneLINK™ Digital Camera Interface | Vaddio™ OneLINK System for Sony® and Panasonic® HDMI Cameras | HDBaseT™ Video Power and Control Extension over a Single Cat-5e or Better Cable
Part Numbers: 999-9530-000 North America 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video power network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt this new OneLINK system allows for easier simpler and faster installations. The OneLINK system sends and regulates power to the camera provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.

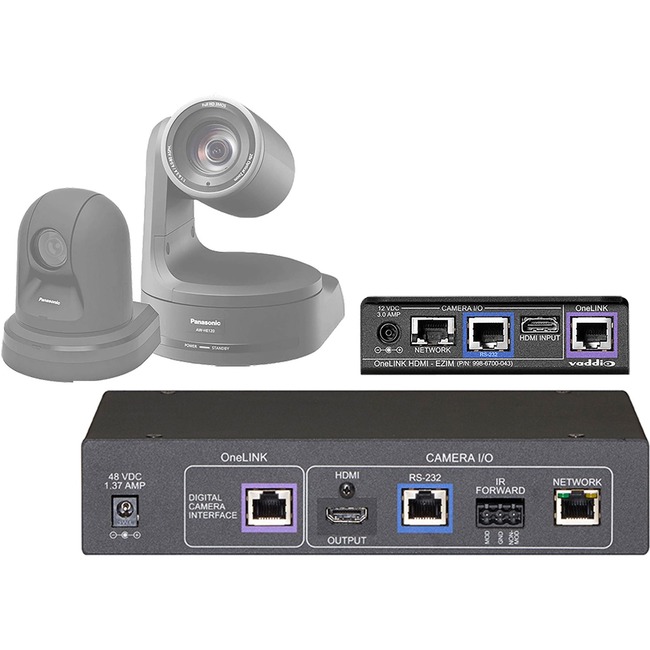

The system consists of the small OneLINK EZIM (EZCamera™ Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other the OneLINK system provides system integrators with an easy to install simple and elegant single cable camera extension solution which exemplifies Vaddio's main tenet; The Art of Easy.
Part Numbers: 999-9530-000 North America 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video power network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt this new OneLINK system allows for easier simpler and faster installations. The OneLINK system sends and regulates power to the camera provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.
The system consists of the small OneLINK EZIM (EZCamera™ Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other the OneLINK system provides system integrators with an easy to install simple and elegant single cable camera extension solution which exemplifies Vaddio's main tenet; The Art of Easy.
Maximum Operating Distance
328.08 ft
Maximum Video Resolution
3840 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x OneLINK HDMI Interface
- 1 x OneLINK EZIM for the Camera Side
- 1 x 48 VDC 1.36 Amp Switching Power Supply
- 1 x AC Cord Set
- 1 x 12" (305mm) HDMI Cable
- 1 x 12" (305mm) Sony 12 VDC Power Cable
- 1 x 12" (305mm) Panasonic 12 VDC Power Cable
- 1 x 12" (305mm) Cat-5e Patch Cable for Network
- 1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232
- 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH SRG-300H and Panasonic AW-HE40H
- 2 x 6-32 x .188" Black Phillips Flat Head Screws
Product Line
OneLINK
Product Name
OneLINK System for Sony & Panasonic HDMI Cameras
Product Type
Video Extender Transmitter/Receiver
Supported video modes
2160p
Twisted Pair Cable Standard
Category 6
