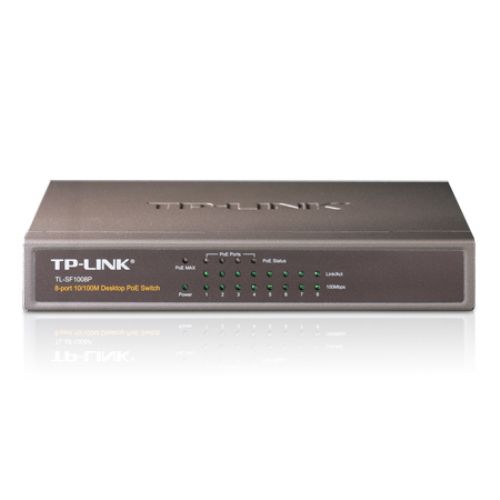

TP-LINK 8-port 10/100 PoE Switch
TP-LINK 8-port 10/100 PoE Switch. Switch type: Unmanaged. Network standard: IEEE 802.3. MAC address table: 1000 entries Maximum data transfer rate: 0.1 Gbit/s. Supported network protocols: CSMA/CD TCP/IP PPF. Color of product: Black Certification: FCC CE
| $61.98 |
Manufacturer:
TP-LINK
Item:
TL-SF1008P
Our Part #
TL-SF1008P
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $3.10 |
$61.98EA
Availability
In Stock
Product description
The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets where you wish to fix devices such as APs IP Cameras or IP Phones etc.
TL-SF1008P has the priority * function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W a priority will be arranged among the PoE ports then the system will cut off the power of the lowest-priority port.
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design outstanding performance and quality the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.
Note: *priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example Port 1 2 and 4 are using 15.4w (maximum power per port is 15.4W) the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system this means Port 1 2 will use 15.4w and Port3 will use 10w and no power will be supplied to Port 4.
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE802.3af compliant PDs
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power link activity and speed
- External power adapter supply
Specifications
Auto MDI/MDI-X
Y
Bandwidth
1.6
Basic switching RJ-45 Ethernet ports quantity
8
Certification
FCC CE
Color of product
Black
Connectivity LEDs
Y
DC-in jack
Y
Dimensions (W x D x H)
6.7 x 3.9 x 1.1
Dimensions (WxDxH)
171 x 98 x 27
Flow control support
Y
Full duplex
Y
MAC address table
1000
Maximum data transfer rate
0.1
Network cabling
Cat 3/4/5/5.5e
Network standard
IEEE 802.3
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 40
Power consumption (typical)
53
Power over Ethernet (PoE) support
Y
Power supply type
48VDC / 1.25A
Stackable
N
Storage relative humidity range
5 - 90
Storage temperature range (T-T)
-40 - 70
Store-and-forward
Y
Supported network protocols
CSMA/CD TCP/IP PPF
Switch Type
Unmanaged
Wireless technologies
Wired
