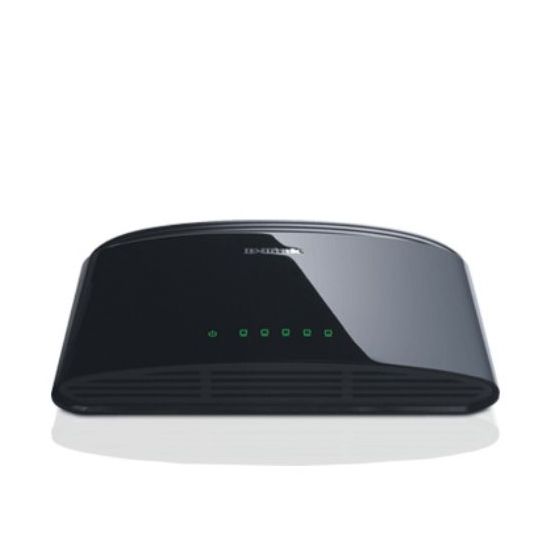

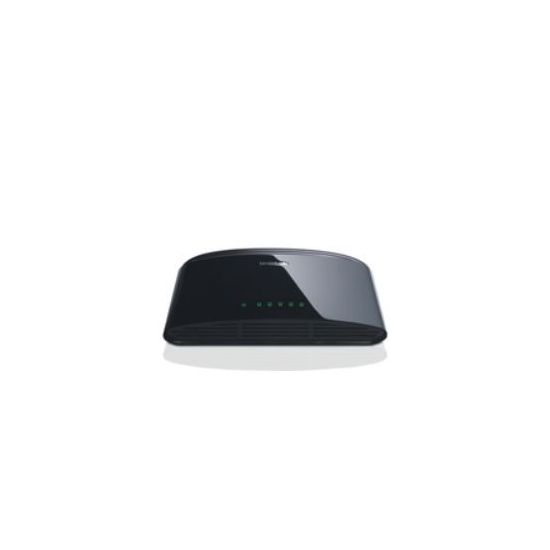

D-Link DES-1005E Network Switch
D-Link DES-1005E. Copper ethernet cabling technology: 100BASE-TX 10BASE-T. Network standard: IEEE 802.3 IEEE 802.3u IEEE 802.3x. MAC address table: 2000 entries Supported data transfer rates: 10/100 Mbps Throughput: 148800 pps. Supported network protocols: CSMA/CD. Color of product: Black Certification: - FCC class B - ICES-003 class B - CE class B - C-Tick class B - VCCI class B - cUL - CB
| $22.38 |
Manufacturer:
D-LINK
Item:
DES-1005E
Our Part #
DES-1005E
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $1.12 |
$22.38EA
Availability
In Stock
Product description
AUTO-SENSING 10/100 PORTS
The DES-1005E uses auto-sensing 10/100 Mbps ports allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX as well as between full and half-duplex allowing you to get the maximum speed possible for each device connected to your network.
AUTO MDI/MDIX CROSSOVER
All ports support automatic MDI/MDIX crossover eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server hub router or switch using regular straight-through twisted-pair Ethernet cables.
FLOW CONTROL FOR SECURE TRANSMISSION
802.3x flow control on each port minimizes dropped packets when the port�s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specifications
10G support
N
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
5
Certification
- FCC class B
- ICES-003 class B
- CE class B
- C-Tick class B
- VCCI class B
- cUL
- CB
- ICES-003 class B
- CE class B
- C-Tick class B
- VCCI class B
- cUL
- CB
Color of product
Black
Copper ethernet cabling technology
100BASE-TX 10BASE-T
Data transfer rate
200
DC-in jack
Y
Dimensions (WxDxH)
125.3 x 83.4 x 29.1
Full duplex
Y
Heat dissipation
12.958
Input current
1.2
Input voltage
5
LED indicators
Y
MAC address table
2000
Mean time between failures (MTBF)
856532
Network standard
IEEE 802.3 IEEE 802.3u IEEE 802.3x
Networking features
Fast Ethernet
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
32 - 122
Operating temperature range (T-T)
0 - 50
Power consumption (typical)
3.8
Power LED
Y
Power over Ethernet (PoE) support
N
Quality of Service (QoS) support
Y
Rack mounting
N
Stackable
N
Storage relative humidity range
5 - 90
Storage temperature range (T-T)
-10 - 70
Supported data transfer rates
10/100 Mbps
Supported network protocols
CSMA/CD
Throughput
148800 pps
Wi-Fi
N
Wireless technologies
Wired
