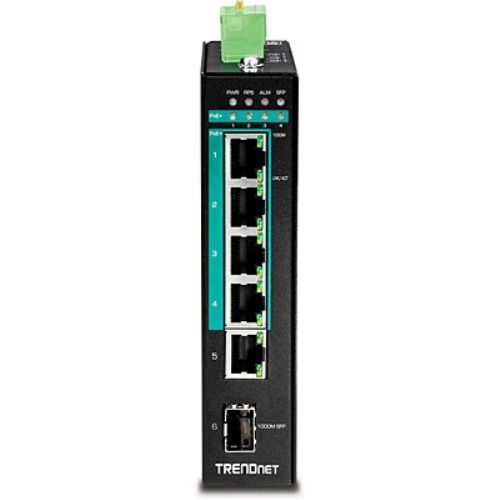

Trendnet TI-PG541 Network Switch
Trendnet TI-PG541. Switch layer: L2 Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Copper ethernet cabling technology: 1000BASE-T 100BASE-TX 10BASE-T. Network standard: IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z. MAC address table: 8000 entries Switching capacity: 12 Gbit/s Throughput: 8.9. Fiber ethernet cabling technology: 1000BASE-LX 100BASE-SX
| $335.23 |
Manufacturer:
TRENDNET
Item:
TI-PG541
Our Part #
TI-PG541
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $16.76 |
$335.23EA
Availability
In Stock
Product description

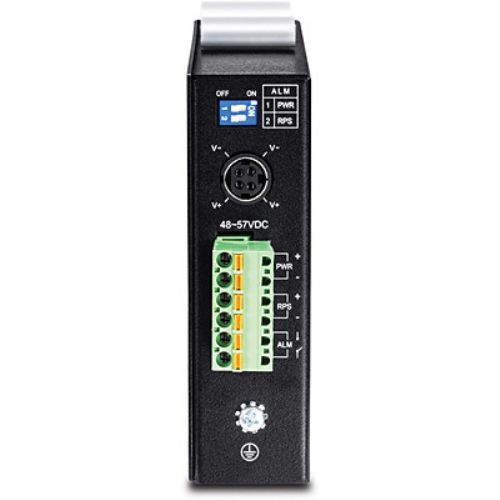

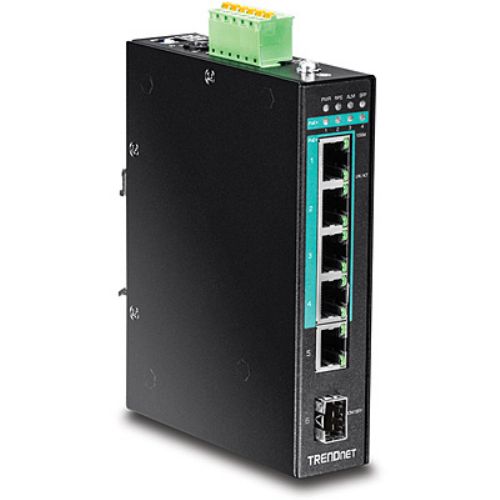

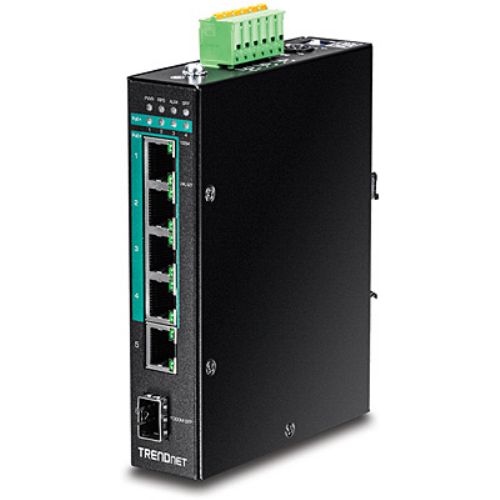

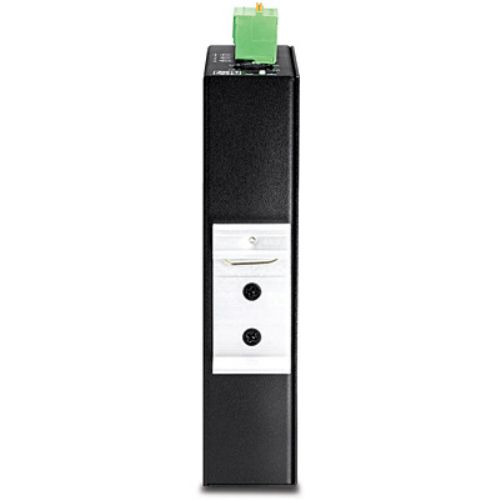

TRENDnet�s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4 802.3at) one Gigabit port one SFP slot and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.
Specifications
10G support
N
AC input frequency
50/60
AC input voltage
100-240
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Buffer size
512
Certification
CE FCC
Color of product
Black
Copper ethernet cabling technology
1000BASE-T 100BASE-TX 10BASE-T
DC-in jack
Y
Depth
30
Fiber ethernet cabling technology
1000BASE-LX 100BASE-SX
Flow control support
Y
Full duplex
Y
Gigabit Ethernet (copper) ports quantity
5
Height
135
Housing material
Metal
International Protection (IP) code
IP30
Jumbo Frames support
Y
LED indicators
Y
MAC address table
8000
Network standard
IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Operating relative humidity range
0 - 95
Operating temperature range (T-T)
-20 - 60
Power consumption (typical)
130
Power over Ethernet (PoE) support
Y
Power over Ethernet plus (PoE+) ports quantity
4
Quick start guide
Y
Rack mounting
N
Redundant power supply (RPS) support
Y
SFP ports quantity
1
Store-and-forward
Y
Switch layer
L2
Switch Type
Unmanaged
Switching capacity
12
Throughput
8.9
Total Power over Ethernet (PoE) budget
120
Weight
500
Width
100
