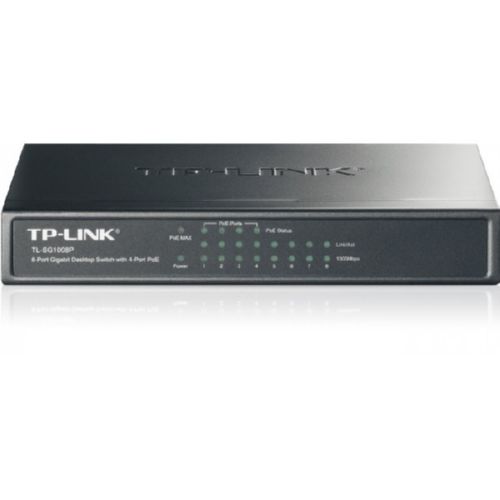

TP-LINK TL-SG1008P Network Switch
TP-LINK TL-SG1008P. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Copper ethernet cabling technology: 1000BASE-T 100BASE-TX 10BASE-T. Network standard: IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3u IEEE 802.3x. MAC address table: 8000 entries Switching capacity: 16 Gbit/s. Color of product: Grey LED indicators: Status Case design: Freestanding. Power consumption (typical): 53W
| $137.86 |
Manufacturer:
TP-LINK
Item:
TL-SG1008P
Our Part #
TL-SG1008P
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $6.89 |
$137.86EA
Availability
In Stock
Product description
What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works

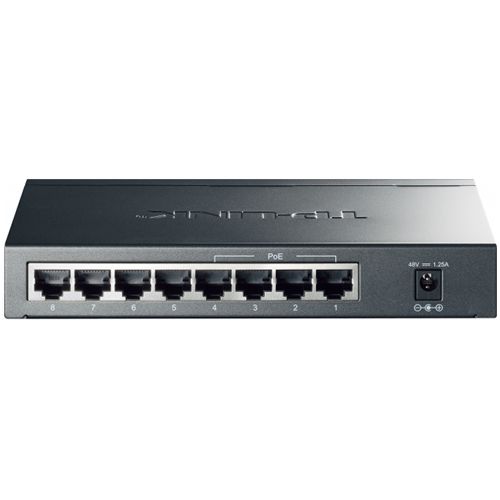

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets where you wish to fix devices such as APs IP Cameras or IP Phones etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W a priority will be arranged among the PoE ports then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example Port 1 2 and 4 are using 15.4w (maximum power per port is 15.4W) the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system this means Port 1 2 will use 15.4w and Port3 will use 10w and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design outstanding performance and quality the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
Specifications
10G support
N
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Case design
Freestanding
Certification
FCC CE
Color of product
Grey
Copper ethernet cabling technology
1000BASE-T 100BASE-TX 10BASE-T
DC-in jack
Y
Depth
98
Flow control support
Y
Full duplex
Y
Gigabit Ethernet (copper) ports quantity
8
Height
27
LED indicators
Status
MAC address table
8000
Network standard
IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3u IEEE 802.3x
Number of power supplies
1
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 40
Power consumption (typical)
53
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) support
Y
Rack mounting
N
Storage relative humidity range
5 - 90
Storage temperature range (T-T)
-40 - 70
Store-and-forward
Y
Switching capacity
16
User guide
Y
Width
171
