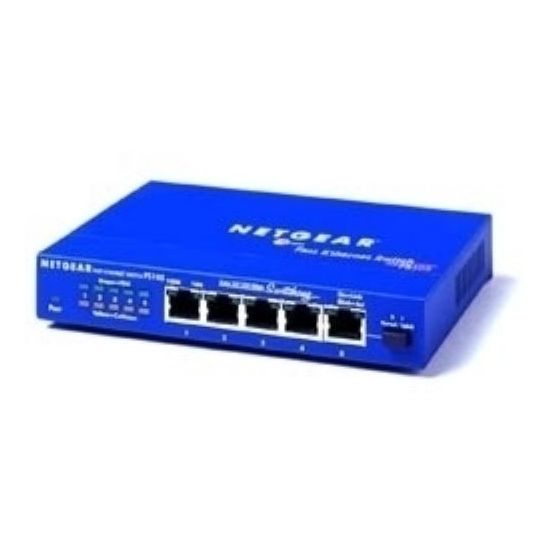

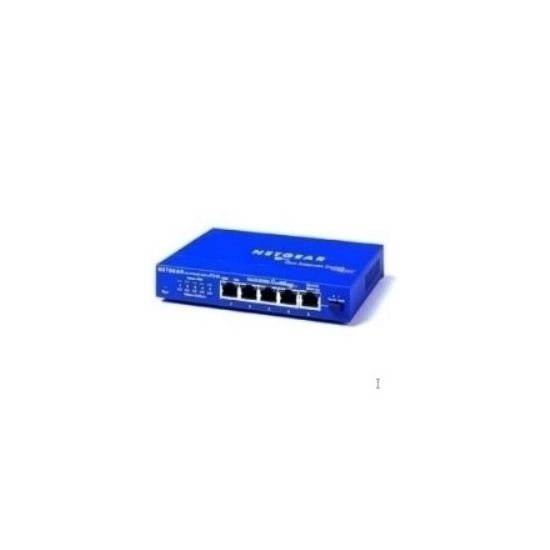

Netgear 5 Port Fast Ethernet Network Switch
Netgear 5 Port Fast Ethernet Network Switch. Switch type: Unmanaged. Copper ethernet cabling technology: 100Base-TX 10Base-T. Network standard: IEEE 802.3u IEEE 802.3x. MAC address table: 1000 entries Switching capacity: 1 Gbit/s Maximum data transfer rate: 0.1 Gbit/s. Data link protocols: Fast Ethernet
| $32.85 |
Manufacturer:
NETGEAR
Item:
FS105NA
Our Part #
FS105NA
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $1.64 |
$32.85EA
Availability
In Stock
Product description
NETGEAR's popular FS100 series desktop switches known for their reliability and performance provide your LAN with high-speed 10/100 Mbps auto-sensing connectivity for as many as 5 8 or 16 users. Just plug in your Ethernet cables connect a power cord and you�re ready to go-there�s no software to configure. They negotiate to the fastest possible connection and with Auto Uplink� technology these switches automatically figure out if the link needs a straight-through or cross-over connection and makes the right choice. Existing 10BASE-T devices are easily integrated within higher bandwidth environments with full wire speeds on all ports of either 10 Mbps or 100 Mbps. Engineered without the need for internal fans they operate silently. And each of these very compact switches is housed in a sturdy metal case for years of dependable use.
Specifications
Basic switching RJ-45 Ethernet ports quantity
5
Compatible operating systems
Windows Linux Mac OS
Connectivity LEDs
Y
Copper ethernet cabling technology
100Base-TX 10Base-T
Data link protocols
Fast Ethernet
Data transfer rate
10
Dimensions (WxDxH)
94 x 27 x 103
Electromagnetic emissions
CE FCC part 15 Class A; EN55 022 (CISPR22) Class A; VCCI Class A; C-Tick
Flow control support
Y
Full duplex
Y
I/O ports
5x 10/100 (RJ-45)
Latency
20 �s
MAC address table
1000
Maximum data transfer rate
0.1
Mean time between failures (MTBF)
390000
Network standard
IEEE 802.3u IEEE 802.3x
Non-operating altitude
3000
Operating altitude
0 - 3000
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 40
Power consumption (typical)
7.5
Power over Ethernet (PoE) support
N
Power requirements
7.5VDC 1A
Safety
UL 1950/cUL; IEC950/EN60950
Storage relative humidity range
5 - 95
Storage temperature range (T-T)
-10 - 70
Switch Type
Unmanaged
Switching capacity
1
Weight
280
