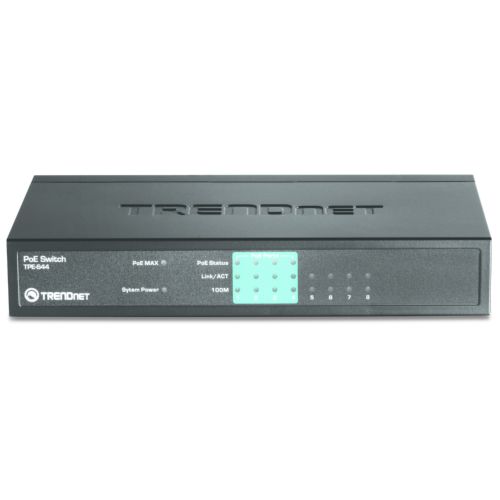

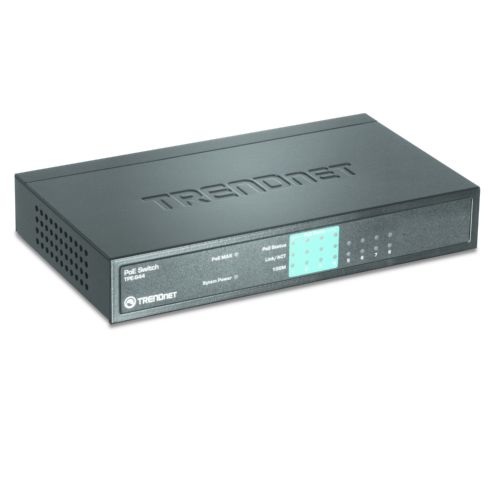

Trendnet TPE-S44 Network Switch
Trendnet TPE-S44. Switch type: Unmanaged. Copper ethernet cabling technology: 100Base-TX 10Base-T. Network standard: IEEE 802.3 IEEE 802.3af. Supported data transfer rates: 10/100 Mbps Maximum data transfer rate: 0.1 Gbit/s. Color of product: Blue Certification: FCC CE
| $77.50 |
Manufacturer:
TRENDNET
Item:
TPE-S44
Our Part #
TPE-S44
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $3.88 |
$77.50EA
Availability
In Stock
Product description
TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.
-Reduces equipment cost by delivering data and power over existing network cables.
-4 PoE and 4 standard 10/100Mbps ports.
-Flow Control for Full-Duplex mode.
-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.

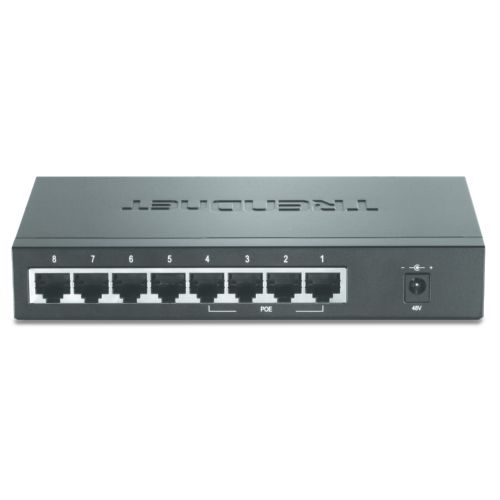

-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
-Built-in 4 PoE Ports (Port 1 ~ Port 4).
-Supports PoE Power Maximum 15.4 watts for each POE port.
-Supports PoE Powered Device (PD) classification identify.
-Full Wire-Speed Non-Blocking Reception and Transmission.
-Store and Forward Switching Method.
-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.
-Extensive Diagnostic LED�s on the Front Panel.
-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.
-5-year limited warranty.
Specifications
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
8
Certification
FCC CE
Color of product
Blue
Connectivity LEDs
Y
Copper ethernet cabling technology
100Base-TX 10Base-T
DC-in jack
Y
Dimensions (WxDxH)
171 x 98 x 29
Full duplex
Y
Maximum data transfer rate
0.1
Network standard
IEEE 802.3 IEEE 802.3af
Networking features
Ethernet Fast Ethernet
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 40
Power over Ethernet (PoE) support
Y
Power requirements
48V DC 0.8A
Stackable
N
Storage temperature range (T-T)
-10 - 70
Supported data transfer rates
10/100 Mbps
Supported protocols
CSMA/CD
Switch Type
Unmanaged
Weight
430
Wireless technologies
Wired
