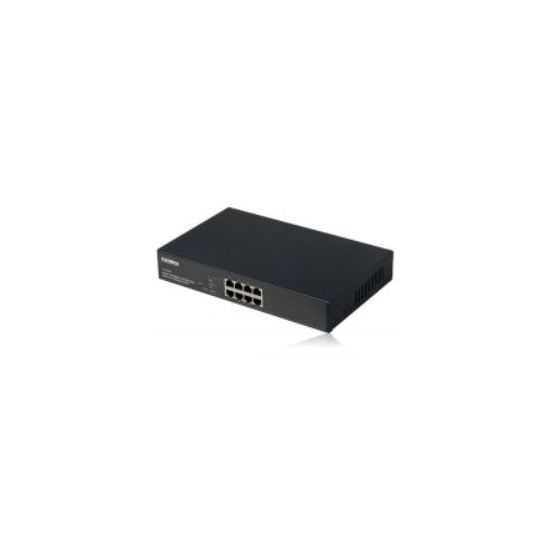

Edimax ES-5808P 8 Ports PoE Switch

- Complies with IEEE 802.3/802.3af/802.3x/802.1p/802.1q standards
- Supplies 48V/DC with 15.4W output per port
- Store-and-Forward architecture
- Provides port based remote power On/Off to restart connected PoE devices individually
- Supports Auto MDI/MDI-X and Auto-Negotiation
- Supports 4-group port based VLAN and password-protected configuration

The ES-5808P is 8-port desktop PoE Web smart Fast Ethernet switch that is designed for small or medium network environment to strengthen then network connection. This compact size design makes the ES-5808P ideal for users with limited space. It also includes a rack mount kit to install it in a 19� rack cabinet.

Complies IEEE 802.3af Power over Ethernet (PoE) ports
The ES-5808P features 8 IEEE 802.3af Power over Ethernet (PoE) ports which supply the electricity up to 15.4 watts per port. It can convert standard 90~260V/AC power into low-voltage DC that runs over existing LAN cable to supply the power for IEEE 802.3af compliant network accessories. The ES-5808P also features PoE detection to verify whether the connected device is IEEE 802.3af compliant or not. If it is not a PoE device (PE) only the data will be sent through LAN cable. The ES-5808P can connect with different PoE products such as Access Points IP cameras or IP phones�It is the best solution where the power outlets are difficult to install or the power outlets are far to the device.

No Special Networking Cable Required
Just use the standard Cat-5 Ethernet cable to link between the ES-5808P and the powered devices (PE). This Ethernet cable can transmit both data and power. No power wire is needed for the powered devices (PE). It reduces the installation time and cost.

Supports Smart Features
The ES-5808P Web smart features can be managed through a Web Browser. The smart features include simple QoS/CoS applications and basic monitoring tools to improve network efficiency. The ES-5808P also supports bandwidth control and port based VLAN. Through a Web interface an administrator can set up VLANs to segregate traffic and QoS to prioritize mission-critical data. All of these features offer extra protection on the network edge. Best of all the password-protected configuration interface can be accessed remotely. It increases the IT manager�s mobility.

Supports Auto-MDI/MDI-X
Every port of the ES-5808P can automatically detect the type of cable. There is no need to choose crossover or parallel cables when you are connecting this switch to another switch or to a computer.

Supports Auto-Negotiation
Every port of the ES-5808P can automatically distinguish the connected network devices are running at 10Mbps 100Mbps and Half/Full-Duplex mode. The ES-5808PE can adjust the speed and mode accordingly.

Supports Non-Blocking wire speed
The ES-5808P receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port of the ES-5808P has the speed up to 200Mbps in full-duplex mode simultaneously . This feature provides full wire speed to the connected devices and allows you to run a high speed network smoothly.

Supports Store and Forward Architecture
With the store and forward architecture the ES-5808P can maximize network performance while minimizing the propagation of bad network packets.
