D-Link DXS-3600-16S

- High Availaiblity
- Hot Swappable Power
- Access Control List
- Traffic Segmentation
- Broadcast/Multicast/Unicast Storm Control
- Web-Based GUI
- Command Line Interface (CLI)
- RADIUS Auth. For Mgm Access
- Link Layer Discovery Protocol (LLDP)

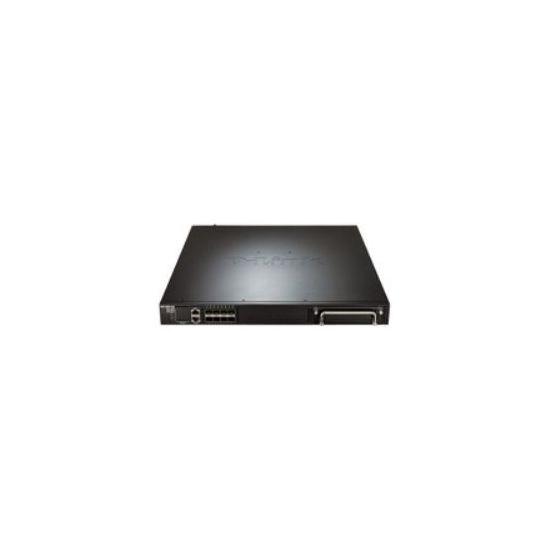

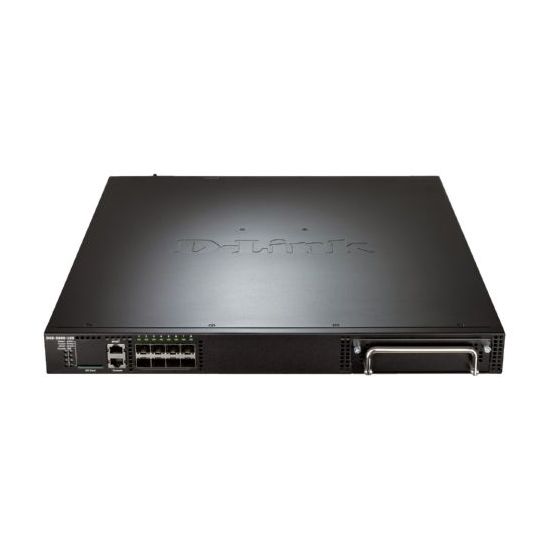

D-Link�s DXS-3600-16S 8-Port Top-of-Rack 10 Gigabit Managed Switch consists of compact high-performance switches that feature 10 Gigabit Ethernet switching routing and very low latency. The 1U height and front-to-back air flow makes the DXS-3600-16S suitable for Top-of-Rack data centre enterprise and campus aggregation network environments. The DXS-3600-16S is an 8-port 10 Gigabit SFP+ ports switch with an expansion module slot. The optional expansion modules provide additional 10GBASE-T or 1000BASE-T connectivity for different applications.

Convenient deployment

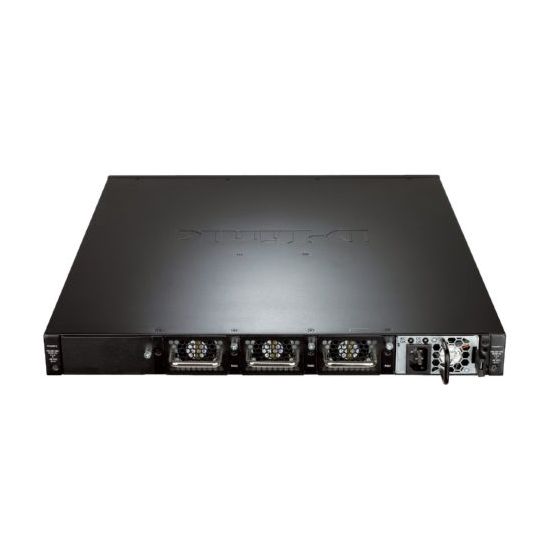

The DXS-3600-16S provides your network with high-performance 10 Gigabit Ethernet switching capacities of up to 480Gbps and forwarding rates of up to 357Mbps. Hot-swappable power modules and fan trays provides the switches with redundancy and high availability. As well as redundancy loading sharing between the power modules helps to further extend their lifetime. The modular fan design can provide 2+1 redundancy for the system. If a fan fails or the temperature rises the smart fans will increase their speed accordingly to ensure the device continues to operate without downtime.

Flexible software
The DXS-3600-16S can be deployed using one of two different software images. The Standard Image (SI) features a wide range of Layer 2 VLAN multicasting Quality of Service (QoS) security data centre and static routing functions. The Enhanced Image (EI) features comprehensive IPv4/v6 routing including RIP VRRP OSPF BGP and L3 multicasting features such as IGMP MLD PIM-DM SM SDM SSM and DVMRP. The Enhanced Image (EI) also supports L2/L3 MPLS VPN that enables the DXS-3600-16S to be deployed as the core router of an enterprise environment or as an aggregation switch in an MPLS environment.

Data centre features
Data Centre Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data centre environments. The DXS-3600-16S supports various core components of Data Centre Bridging (DCB) such as IEEE 802.1Qbb IEEE 802.1Qaz and IEEE 802.1Qau; preventing data loss during network congestion managing the allocation of bandwidth and providing congestion management. The DXS-3600-16S also supports cut-through switching which reduces network latency.

Energy efficient
The DXS-3600-16S allows users to manage airflow by using different power and fan module sets. Front-to-back airflow optimizes air circulation to provide more effective cooling throughout rack systems in data centres. The switches also feature built-in smart fans; internal heat sensors monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures the fans will run slower reducing the switch�s power consumption and noise.
