D-Link EasySmart

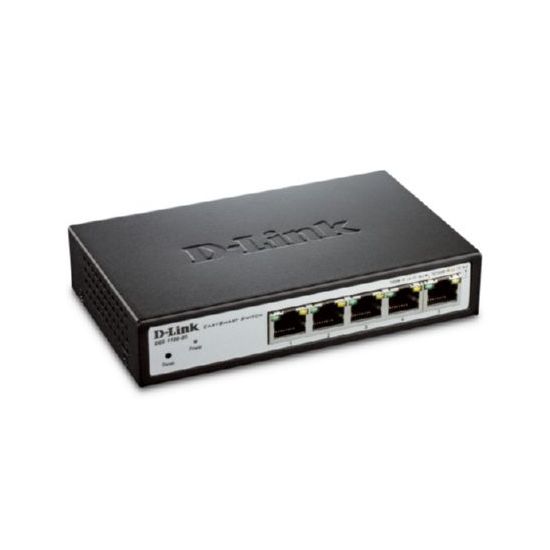

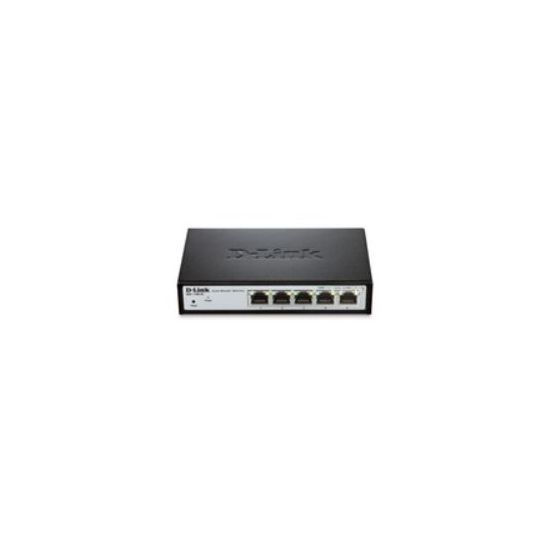

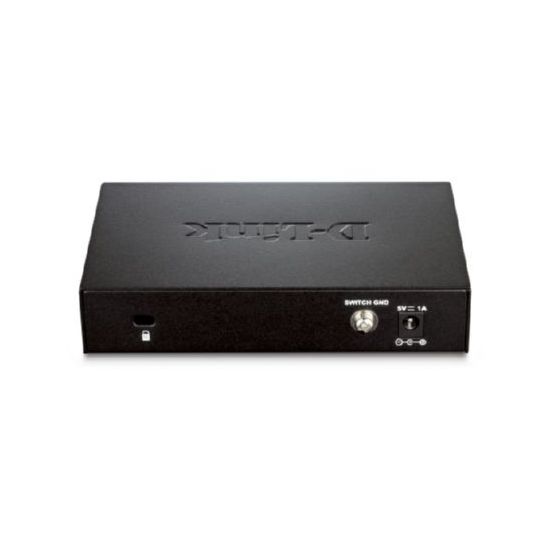

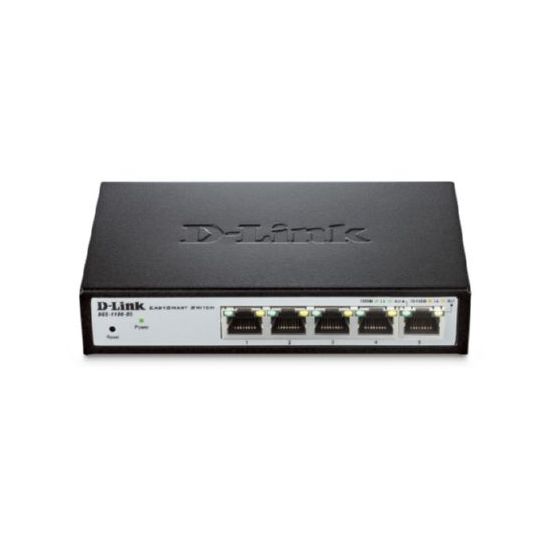

D-Link�s DGS-1100 Series is the newest addition to EasySmart Switches featuring D-LinkGreen Technology. The DGS-1100 Series consists of 5 8 16 and 24 10/100/1000Mbps port models. The 5 and 8 port models come in a compact desktop enclosure while the 16 and 24 port models come in a compact 11� desktop/rackmount enclosure. Compliant with IEEE802.3az Energy Efficient Ethernet these switches consume less power during idle periods. They also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the Smart Console Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life. The DGS-1100 Series provides an affordable solution for Small and Medium Business without a dedicated IT staff.They are also suitable for enterprise deployment branch offices and meeting rooms that require simple network management.

Surveillance VLAN and Bandwidth Control

The DGS-1100 Series supports Surveillance VLAN which is best suited for video surveillance deployment. Surveillance VLAN is a new industry leading technology that consolidates data and surveillance video transmission through a DGS-1100 switch thus sparing businesses the expense of dedicated hardware and facilities. Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition with Bandwidth Control network administrators can reserve bandwidth for important functions that require more bandwidth or high priority.

D-Link Green/Power Saving Performance

Compliant with IEEE802.3az Energy Efficient Ethernet these switches consume less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices users can cut operating costs and even cut down on necessary cooling equipment helping small and medium sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. The switches automatically detect the length of the connected cables and can adjust power usage for shorter cable connections of up to 20 meters. In addition the switches monitor link status of every port and drastically reduces power consumption when a port is without a link.

Easy Troubleshooting/Security

Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated portshelping administrators limit network access to authorized devices only.

Easy to deploy

The DGS-1100 EasySmart Switches support an intuitive Smart Console utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The Smart Console allows customers to discover multiple D-Link Smart and EasySmart Switches within the same L2 network segment. With this utility users do not need to change the IP address of their PC and makes initial setup of the Smart Switches quick and easy.Switches within the same L2 network segment that are connected to the user�s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices including password changes and firmware upgrades.
