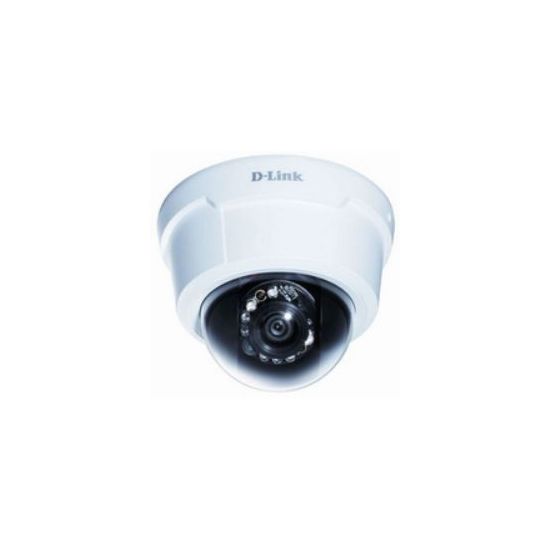

D-Link DCS-6113 surveillance camera

- 1/2.7� 2 Megapixel CMOS progressive sensor
- Real-time H.264 MPEG-4 and Motion JPEG compression
- Full HD resolution up to 1920x1080
- Fixed lens 4.0 mm F1.5
- Max. resolution 1920x1080 at 15 fps 720p at 30fps
- Four simultaneous streams
- Built-in removable IR-cut filter for day/night surveillance
- Built-in IR LED to support dark environments with 0 lux illumination
- Power over Ethernet (PoE)
- Tamper detection
- Motion detection
- Advanced event management
- ePTZ
- Supports multiple access list
- Windows 7/Vista LLTD
- Privacy Mask feature
- Micro SD Card slot
- 2-way audio support
- 1 digital input / 1 digital output
- Analog AV output (NSTC/PAL)
- 3GPP mobile surveillance
- IPv6 802.1x QoS Cos
- Built-in Samba client for NAS
- ONVIF compliant

D-Link�s DCS-6113 Full HD Day & Night Fixed Dome IP Camera features industry-leading High-Definition (Full 1080p HD) Megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. DCS-6113 connects to a network to provide high-quality live video over the Internet. This cameras also features a 3-axis inner bracket that allows for flexible observation area adjustment. With the free-bundled D ViewCam 32-channel recording software this IP camera provides a complete solution for high-quality live viewing and reliable recording. The camera also have a built-in MicroSD card slot which can be used for local backup by storing important events on an easily retrievable MicroSD card.

Full HD Surveillance
The DCS-6113 delivers Full HD 16:9 widescreen IP video surveillance which provides vivid high-quality video making it easier to view and monitor footage.

Multiple Video Streams
The DCS-6113 supports simultaneous streaming of H.264 MPEG-4 and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity ideal for situations which require extensive image detail. Additionally DCS-6113 supports multicast H.264 streaming allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Day and Night Functionality
The DCS-6113 can be used during both day and night. The ICR filter allows the camera to capture crisp color images during the daytime and detailed grayscale at night in low-night conditions and even in complete darkness.

Tamper-proof
Anti-tamper features make the DCS-6113 camera suitable for tamper-prone locations such as transportation hubs schools or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected de-focused blocked or spray-painted and respond promptly with a visible or audible alarm.

Flexible Connectivity
The DCS-6113 includes input and output ports for connectivity to external devices such as IR sensors switches and alarm relays. They also incorporate Power over Ethernet (PoE) allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

3GPP Mobile Surveillance
Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability allowing users to check the camera�s video feed while on the go without a computer.

D-ViewCam� for Management
The included D-Link D-ViewCam� is sophisticated software which allows users to manage up to 32 network cameras set e-mail alert notifications create recording schedules and use motion detection to record directly important events to a hard drive. D-ViewCam� also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located further simplifying the management process.

Viewing Window and ePTZ
Customise your Region of Interest (ROI) by simply drawing a rectangle on the full view display in the web interface. Being able to digitally move the ROI is an advantage for a fixed camera since it can utilize the virtual auto pan along with preset point settings to display vivid details from HD video footage. The viewing window also allows you to utilize zoom to obtain more in-depth footage.

Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-6113 ia ONVIF compliant and therefore interoperable with other manufacturer�s products on the same network such as cameras storage systems video analytics products and Video Management Systems.
