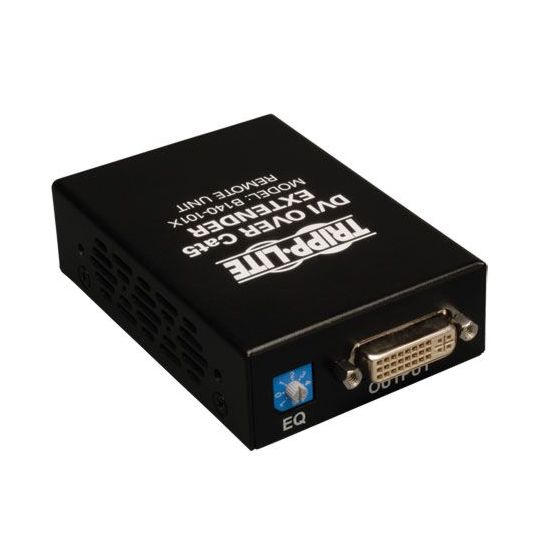

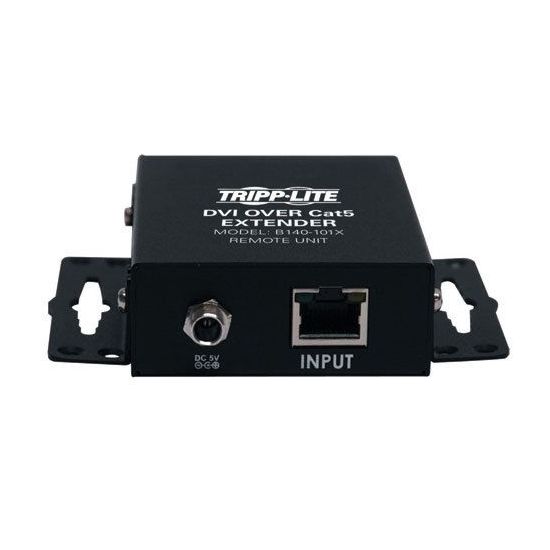

Tripp Lite B140-101X Video Splitter

Tripp Lite's B140-101X DVI over Cat5 Active Extender Wallplate Kit is the perfect solution for those who need to extend a DVI-D Single-Link signal up to 200 ft. from the source. When using 24Awg solid wire Cat5e/6 cabling (Tripp Lite N202-Series) the B140-101X can extend a 1024 x 768 (60Hz) signal up to 200 ft. or a 1920 x 1080 (60Hz) up to 150 ft.. Installation is quick and easy: Simply attach the local unit to your DVI source attach the remote unit to your display and then connect a Cat5e/6 patch cable between the two. If necessary use the built-in Equalization setting on the remote unit to adjust the video image. Mounting hardware is included that allows the remote unit to be wallmounted rackmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.

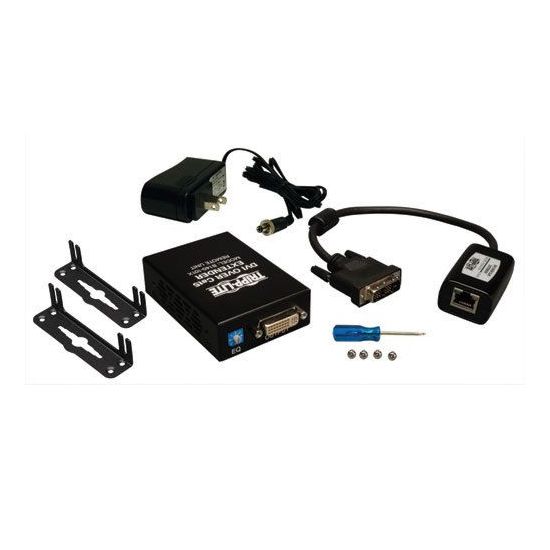

- Kit comes with both local transmitter and remote receiver units.
- Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz) or up to 150 ft. at 1920 x 1080 (60Hz) when using 24Awg solid wire Cat5e/6 cabling. (Tripp Lite N202-Series)
- Remote unit features built-in Equalization setting that allows for adjustment of the video image.
- Mounting hardware is included that allows the remote unit to be wallmounted rackmounted or pole-mounted.
- No software or drivers required.
- Compatible with all operating systems.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
