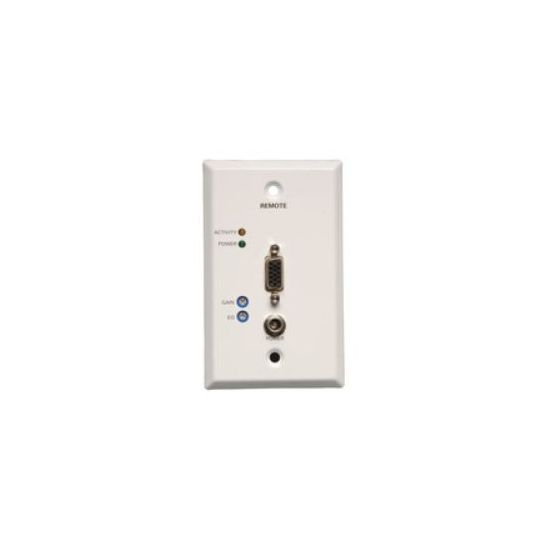

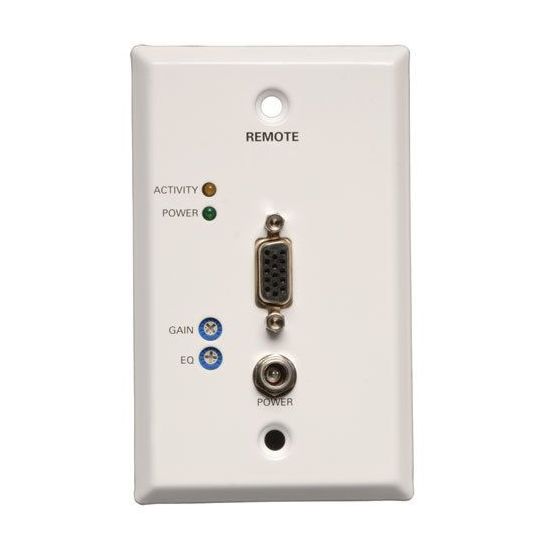

Tripp Lite B132-100-WP-1 audio/video extender

Tripp Lite's B132-100-WP-1 works with a B132-002-1 or B132-004-1 local unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft. or a 1024 x 768 (60Hz) video signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable eliminating the need for a 110 punchdown connection. Ideal for digital signage situations such as retail schools churches etc.

- Works with a B132-002-1 or B132-004-1 local unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft. or a 1024 x 768 (60Hz) video signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable
- For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K
- Features built-in Equalization and Gain controls to adjust the video image

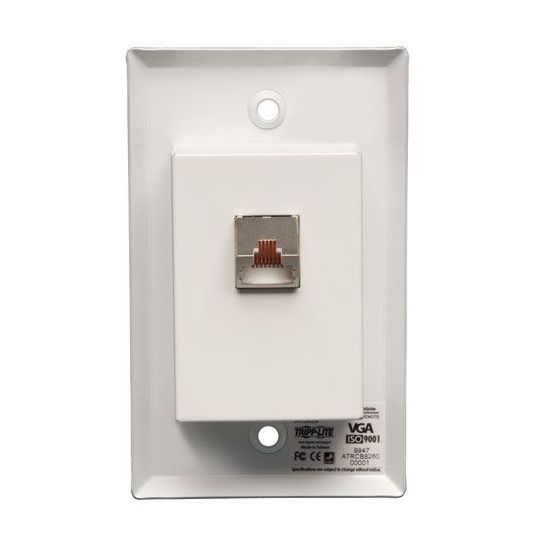

- RJ45 type wallplate allows you to use standard patch cable eliminating the need for a 110 punchdown connection
- Ideal for digital signage situations such as retail schools churches etc..
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

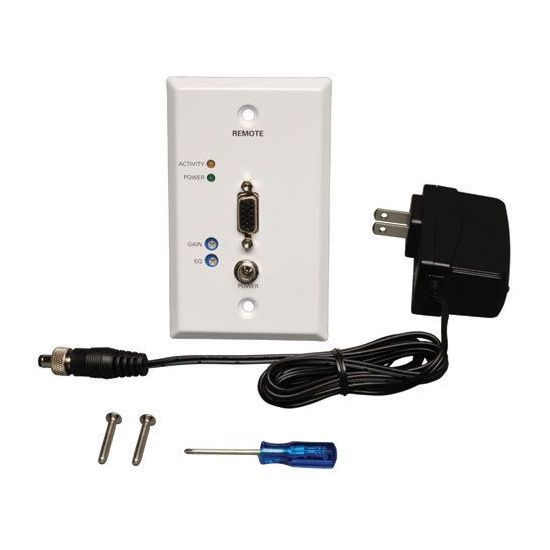

Package Includes
- Extender remote (Receiver) wallplate
- Mini-Screwdriver for EQ/Gain adjustment
- Wallplate screws
- External Power Supply (Input: 100-240V 50/60Hz 0.5A Output: 5V 2A)
- Owner�s Manual
