Tripp Lite B130-101-U audio/video extender

Tripp Lite's USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350 ft. or a 1024 x 768 (60Hz) signal up to 500 ft. using readily available Cat5e/6 cabling. Ideal for digital signage applications classroom or auditorium projectors and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes Gain adjustment for brightness/darkness control and Equalization adjustment for sharp clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required.

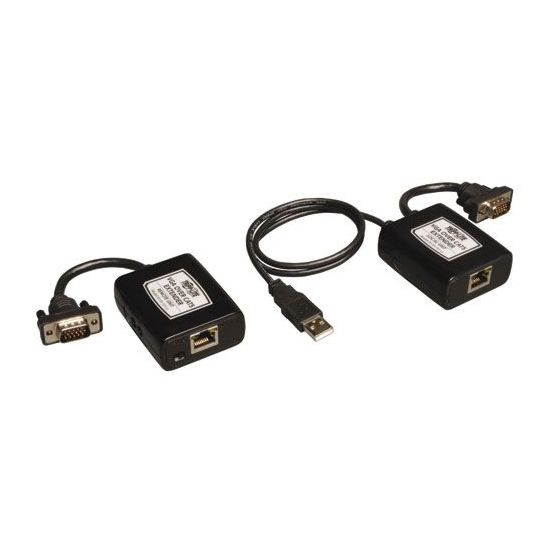

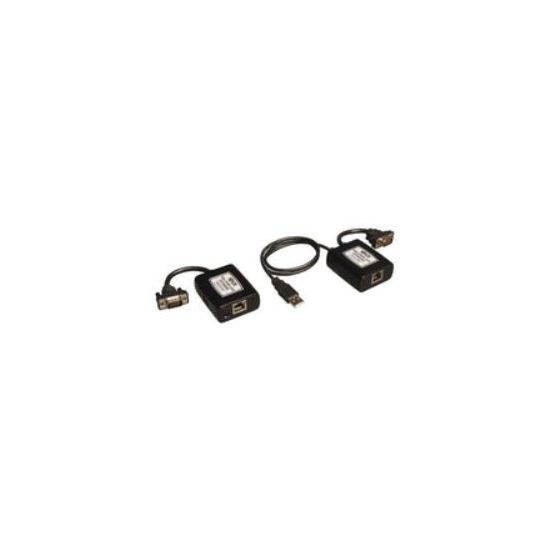

Kit includes a Transmitter with VGA and USB (power) pigtails and a Receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls.

Tripp Lite recommends using Solid Conductor 24Awg Cat5e ( PVC or Plenum rated ) for best signal quality. For maximum signal quality see Tripp Lite P524-01K Zero-Skew UTP cable specifically designed for all Video over UTP equipment.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.

Key Features
- Extends a 1920 x 1440 (60Hz) signal up to 350 ft. or a 1024 x 768 (60Hz) signal up to 500 ft.
- USB-powered...no external AC power needed
- Built-in VGA dongles...no need for additional VGA cables

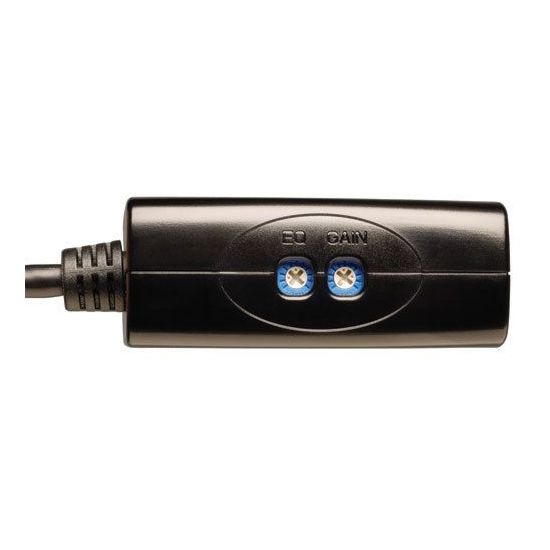

- Built-in Equalization and Gain controls for the sharpest images
- Uses readily available Cat5e or Cat6 solid conductor cable
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1 year limited warranty

Typical Applications
- Retail signage
- Schools Churches needing video projection
- Business conference areas

System Requirements
- Computer with VGA graphics card
- Display monitor or projector with VGA

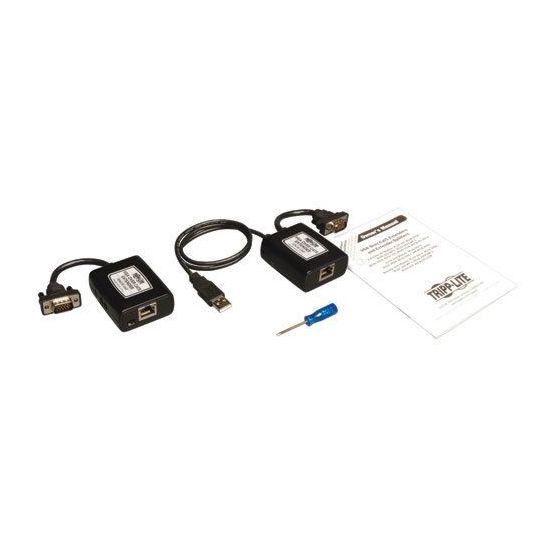

Package Includes
- VGA over Cat5 Transmitter
- VGA over Cat5 Receiver
- EQ and GAIN adjustment screwdriver
