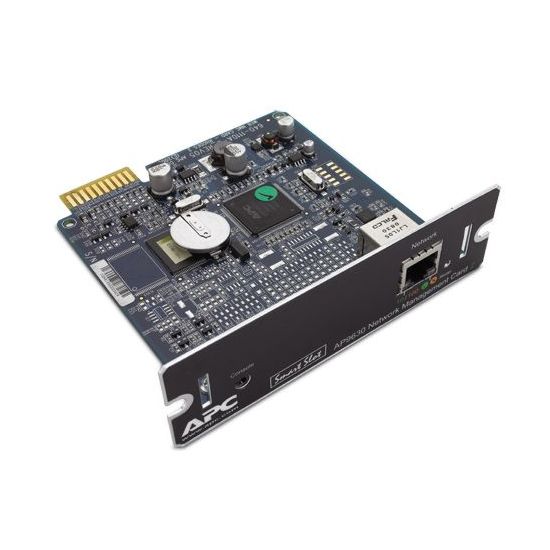

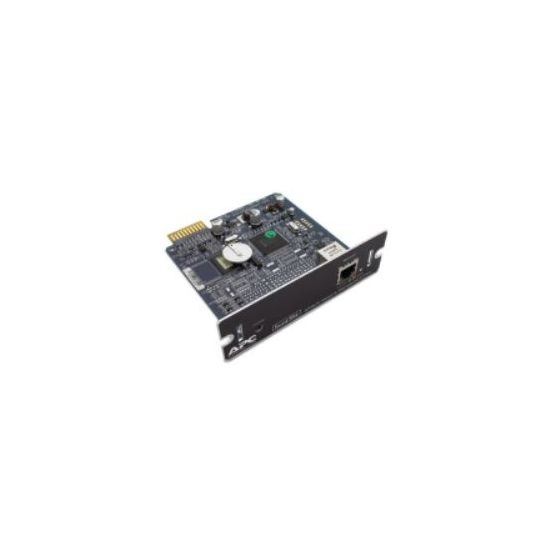

APC AP9630 Network Card & Adapter
APC AP9630. Wireless technologies: Wired Interface: Ethernet. Transfer rate (Mbps): 100 Mbit/s. Network standard: IEEE 802.3 IEEE 802.3u. Supported network protocols: HTTP HTTPS IPv4 IPv6 NTP SMTP SNMP v1 SNMP v2c SNMP v3 SSH V1 SSH V2 SSL TCP/IP Telnet. Color of product: Black
| $356.35 |
Manufacturer:
AMERICAN POWER CONVERSION
Item:
AP9630
Our Part #
AP9630
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $17.82 |
$356.35EA
Availability
In Stock
Product description
Manageability
Scheduling
Customize shut down and reboot of connected equipment and UPSs.
Integrates with InfraStruXure Central
An IT-ready scalable monitoring system that collects organizes and distributes critical alerts surveillance video and key information providing a unified view of complex physical infrastructure environments from anywhere on the network.
Data logging
Identify problematic trends before they escalate or export the data log for analysis.
Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Run command file
Run command file on shutdown sequence as well as start-up sequence.
Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Total Cost of Ownership
Remote UPS management
Enable management of your UPS by connecting it directly to the network.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.
Enterprise management system compatible
Manage your APC devices from a single system by forwarding SNMP traps (events) to your preferred enterprise management system.
Availability
Reboot equipment remotely
Saves dispatching technicians to remote locations.
Operating System Shutdown
Prevents possible data corruption by performing graceful unattended operating system shutdown in the event of an extended power outage.
Protection
Password Security
User-selectable password protection prevents unauthorized access.
Three-tier user access
Control user access on three levels including read only device and administrator.
Radius support
Use an existing radius server to securely authenticate authorize and account for your APC device.
PowerChute Network Shutdown
Reliable network-based shutdown of multiple servers.
Compatibility
Compatible with Smart-Slot enabled UPSs
Compatible with all APC SmartSlot UPSs including Smart-UPS and Symmetra units.
Specifications
Certification
AS/NZS 3548 (C-Tick) A EN 55022 A EN 55024 FCC 15 A GOST ICES-003 VCCI A
Color of product
Black
Depth
114
Ethernet LAN (RJ-45) ports quantity
1
Ethernet LAN connection
Y
Height
38
Interface
Ethernet
Internal
Y
Manual
Y
Network standard
IEEE 802.3 IEEE 802.3u
Non-operating altitude
0 - 15000
Operating altitude
0 - 3000
Operating relative humidity range
0 - 95
Operating temperature range (T-T)
0 - 45
Package depth
159
Package height
51
Package weight
340
Package width
235
RoHS compliance
Y
Security algorithms
802.1x RADIUS
Storage relative humidity range
0 - 95
Storage temperature range (T-T)
-5 - 45
Supported network protocols
HTTP HTTPS IPv4 IPv6 NTP SMTP SNMP v1 SNMP v2c SNMP v3 SSH V1 SSH V2 SSL TCP/IP Telnet
Transfer rate (Mbps)
100
Weight
80
Width
121
Wireless technologies
Wired
