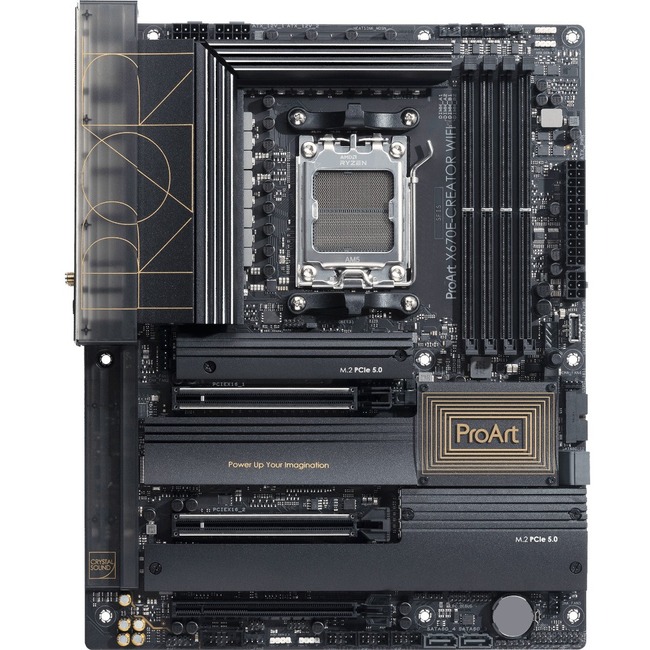

Asus ProArt X670E-CREATOR WIFI Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16+2 team power stages DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4® 10 Gb and 2.5 Gb Ethernet plus WiFi 6E.

It manifests a professional elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

All you need for maximum productivity | Dual USB4® connectivity

Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.

Ultrafast networking | WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS) allowing for improved data organization and security.

PCIe 5.0 support

Fully embracing the new standard the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four onboard M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

PCIe 5.0 expansion slots

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards they are also protected with SafeSlot retention brackets and the top slot can be released easily thanks to the Q-Release button.

Quick charging your USB devices | USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

• ProArt X670E-CREATOR WIFI Desktop Motherboard
• 1 x DisplayPort Cable
• 4 x SATA 6Gb/s Cables
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x Q-connector
• 1 x M.2 Q-Latch Package for M.2 Backplate
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 Backplate
• 1 x Screw Packages for M.2 SSD
• 1 x ProArt Ruler
• 1 x ACC Express Activation Key Card
• 1 x User Guide
