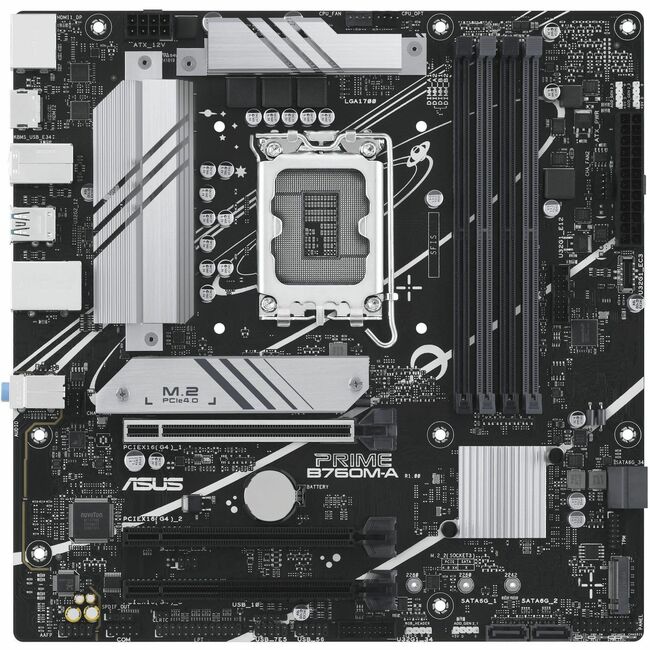

Asus Prime PRIME B760M-A Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX

Asus Prime PRIME B760M-A Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Celeron, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
$172.13
  • Intel
  • ®
  • LGA 1700 Socket:
  • Ready for 13thand 12thGen Intel®processors
  • Ultrafast Connectivity:
  • PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling:
  • VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology:
  • ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting:
  • Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Manufacturer:
ASUS Computer International
Item:
PRIME B760M-A
UPC Code:
197105140684
Our Part #
43201513
Condition
New
Extended Warrenty
1 Year Extended Warrenty$8.61
$172.13EA
0 Reviews
Availability In Stock
Great Deals Everyday

You may be also interested

Product description

Asus Prime PRIME B760M-A Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Celeron, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Core, Celeron, Pentium Gold Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

Specifications

Chipset Model
B760
Form factor
Micro ATX
HDMI Version
2.1
HDMI version
2.1
Maximum Memory Supported
128 GB
Memory form factor
UDIMM
Memory form factor
DIMM
Memory Speed Supported
6200 MHz
Memory Speed Supported
5000 MHz
Memory Speed Supported
5600 MHz
Memory Speed Supported
5400 MHz
Memory Speed Supported
5800 MHz
Memory Speed Supported
7000 MHz
Memory Speed Supported
6800 MHz
Memory Speed Supported
5200 MHz
Memory Speed Supported
6000 MHz
Memory Speed Supported
6400 MHz
Memory Speed Supported
7200 MHz
Memory Speed Supported
4800 MHz
Memory Speed Supported
6600 MHz
Number of M.2 Interfaces
2
Number of memory slots
4
Number of Memory Slots
4
Number of Total Expansion Slots
3
Onboard Video
CPU Dependent Video
PCI Express Standard
PCI Express 4.0
Processor Generation Supported
13th Gen
Processor Generation Supported
12th Gen
Processor socket
Socket LGA-1700
Processor Socket
Socket LGA-1700
Processor Supported
Pentium Gold
Processor Supported
Celeron
Processor Supported
Core
Product type
Desktop Motherboard
RAID levels
5
RAID levels
1
RAID levels
10
RAID levels
0
S/PDIF
Yes
UPC Alternates
197105140684
Width
9.6"
Audio Channels
7.1
Brand Name
Asus
Chipset Manufacturer
Intel
Controller Type
Serial ATA/600
Environmental Certification
RoHS
Form factor
Micro ATX
Manufacturer
ASUS Computer International
Manufacturer Part Number
PRIME B760M-A
Manufacturer Website Address
http://usa.asus.com
Marketing Information
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B760M-A provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity.
  • Intelligent Control
  • UEFI BIOS
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system it offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and these removable captive screws help reduce risk of drops or loss during heatsink removal. PERFORMANCE The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity so your system will be ready for action with stable power intuitive cooling and flexible data transfer options
Memory form factor
DIMM
Memory form factor
UDIMM
Memory Technology
DDR5 SDRAM
Package Contents
  • PRIME B760M-A Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
  • 1 x User guide
Product Line
Prime
Product Name
PRIME B760M-A Desktop Motherboard
Product Type
Desktop Motherboard
RAID Levels
10
RAID Levels
5
RAID Levels
1
RAID Levels
0
Total Number of USB Ports
6
Width
9.6"
