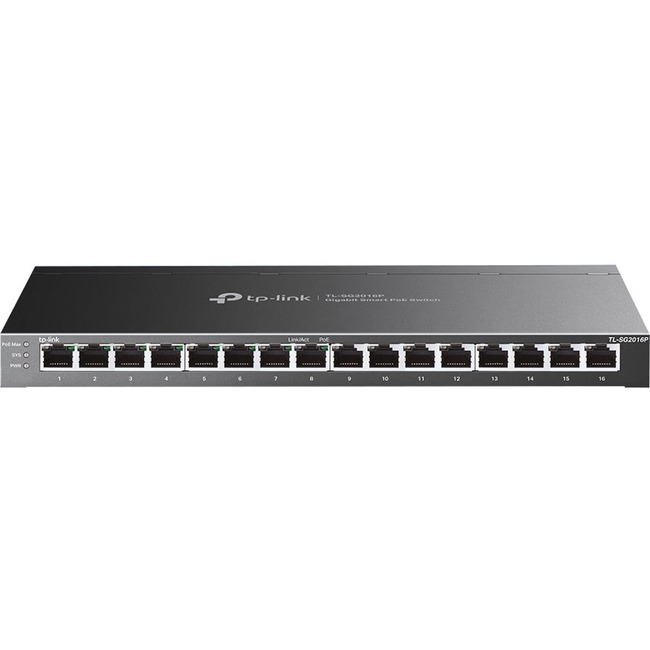

TP-Link TL-SG2016P - JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ - Limited Lifetime Warranty
TP-Link TL-SG2016P - JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ - Limited Lifetime Warranty - 16 Port Gigabit Smart Managed PoE Switch - 8 PoE+ Port @120W - Omada SDN Integrated | PoE Recovery - IPv6 - Static Routing - L2/L3/L4 QoS
| $213.67 |
- Flexible Full Gigabit 16-Port Port Configuration: 8� PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 120W, together w/ 8x Gigabit Non-PoE Ports for high-speed connections.
- Integrated into Omada SDN: Omada SDN platform integrates network devices, including switches, access points & gateways with multiple control options offered - Omada Hardware controller or Omada Software Controller. Standalone Mode also applies.
- Cloud Access: Remote cloud access and Omada app brings centralized cloud management of the whole network at different sites-all controlled from a single interface anywhere, anytime.
- SDN Compatibility: For SDN usage, make sure your devices/controllers are either equipped with or can be upgraded to SDN version. SDN controllers work only with SDN switches, access points & gateways. Non-SDN controllers work only with non-SDN access points. For devices that are compatible with SDN firmware, p
Manufacturer:
TP-LINK Technologies Co., Ltd
Item:
TL-SG2016P
UPC Code:
840030709494
Our Part #
43222612
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $10.68 |
$213.67EA
Availability
In Stock
You may be also interested
Product description
TP-Link TL-SG2016P - JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ - Limited Lifetime Warranty - 16 Port Gigabit Smart Managed PoE Switch - 8 PoE+ Port @120W - Omada SDN Integrated | PoE Recovery - IPv6 - Static Routing - L2/L3/L4 QoS
16 Port Gigabit Smart Managed PoE Switch - 8 PoE+ Port @120W - Omada SDN Integrated | PoE Recovery - IPv6 - Static Routing - L2/L3/L4 QoS
Specifications
Depth
4.4"
Features
Fanless
Form factor
Desktop
Frequency
50 Hz
Frequency
60 Hz
Height
1"
Input voltage
120 V AC
PoE Budget
120 W
Power consumption
146.50 W
Power source
Power Adapter
Product type
Ethernet Switch
Total Number of Network Ports
16
UPC Alternates
840030709494
Width
11.3"
Application/Usage
IP Phone
Application/Usage
PC
Application/Usage
Wireless Access Point
Application/Usage
Network
Application/Usage
IP Camera
Brand Name
TP-Link
Depth
4.4"
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Features
Fanless
Form factor
Desktop
Frequency
50 Hz
Frequency
60 Hz
Height
1"
Input voltage
120 V AC
Layer Supported
2
Manageable
Yes
Manufacturer
TP-LINK Technologies Co. Ltd
Manufacturer Part Number
TLSG2016P
Manufacturer Website Address
http://www.tp-link.com/us
Marketing Information
Smarter Switching for Smarter Results
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
TL-SG2016P
- Centralized Management
- Multi-Site Management
- Omada App
- Multicast Optimization
- VLAN
- Access Control List
- 120 W PoE Budget
- Durable Metal Casing
Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices such as IP cameras access points and IP phones. It also works with non-PoE wired devices to provide gigabit connections such as PCs printers and IPTV.
Surveillance
Works with IP Cameras
Works with IP Phones
Wi-Fi Coverage
Works with Omada EAPs
Wired Connections
Works with PCs and Printers
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports the switch supports up to 120 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission it offers flexible deployment for PoE-supported devices such as wireless access points IP cameras and IP phones lowering infrastructure costs for small businesses.
Value-Added Features Bring Unexpected Experience | Access Control List (ACL)
ACL serves as a virtual admin allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experience
Designate the priority of traffic based on QoS ensuring latency sensitive applications like voice and video remain clear and lag-free.
VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs improve information security and reduce data congestion.
Omada SDN-Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points switches and gateways guaranteeing powerful business network with higher efficiency higher security and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings monitor the network status and manage clients all from the convenience of a smart phone or tablet.
Media Type Supported
Twisted Pair
Network Technology
1000Base-T
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.1s
Networking standards
IEEE 802.3i
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.1D
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.1Q
Networking standards
IEEE 802.1ab
Networking standards
IEEE 802.3ad
Networking standards
IEEE 802.1w
Networking standards
IEEE 802.1x
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
Port/Expansion Slot Details
8 x Gigabit Ethernet Network
Power consumption
146.50 W
Power source
Power Adapter
Product Line
JetStream
Product Model
TL-SG2016P
Product Name
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Product Type
Ethernet Switch
Weight (Approximate)
4.41 lb
Width
11.3"
