Netgear M6100-44GF3
Netgear M6100-44GF3. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). MAC address table: 32000 entries. Security algorithms: 802.1x RADIUS HTTPS SSH SSL/TLS. Management protocols: SNMP RMON MIB LLDP AAA sFlow RSPAN Supported network protocols: iPv4/iPv6
| $7,567.98 |
Manufacturer:
NETGEAR
Item:
XCM8903SF-10000S
Our Part #
XCM8903SF-10000S
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $378.40 |
$7,567.98EA
Availability
In Stock
Product description

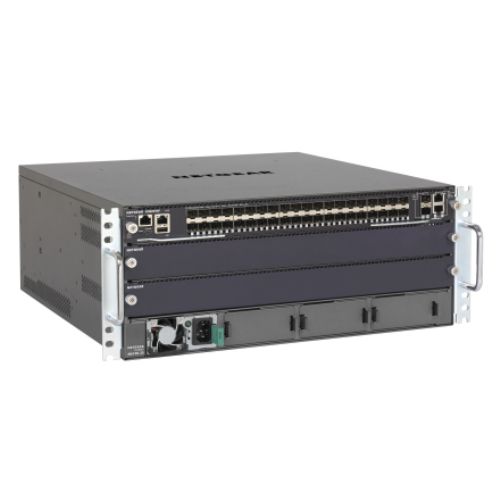

M6100-44GF3 Starter Kit bundle including M6100-3S base chassis XCM8944F blade AFT603 fan tray APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility Lower Complexity and Stronger Investment Protection at a High-Value Price Point.
The NETGEAR� Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane hitless failover redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX PFC ETS FIP Snooping) and advanced IPv6 L3 routing (OSPF PBR BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI) functional NETGEAR web interface (GUI) SNMP sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Specifications
10G support
Y
Access Control List (ACL)
Y
Basic switching RJ-45 Ethernet ports quantity
44
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Certification
CE
FCC Part 15 Class A
VCCI Class A
Class A EN 55022
(CISPR 22) Class A
Class A C-Tick
EN 50082-1
EN 55024
FCC Part 15 Class A
VCCI Class A
Class A EN 55022
(CISPR 22) Class A
Class A C-Tick
EN 50082-1
EN 55024
Color of product
Black Grey
Depth
441.6
DHCP client
Y
DHCP server
Y
Fibre channel ports
2
Flow control support
Y
Form factor
4U
Height
175.9
Housing material
Metal
IGMP snooping
Y
Jumbo Frames support
Y
Link aggregation
Y
MAC address filtering
Y
MAC address table
32000
Management protocols
SNMP RMON MIB LLDP AAA sFlow RSPAN
Multicast support
Y
Network standard
IEEE 802.1ab IEEE 802.1D IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1v IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ac IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x
Non-operating altitude
0 - 3000
Number of queues
7
Number of VLANs
4000
Operating altitude
0 - 3000
Operating temperature range (T-T)
0 - 50
Port mirroring
Y
Power over Ethernet (PoE) support
N
Quality of Service (QoS) support
Y
Rack mounting
Y
Safety
CE CSA UL 1950 /cUL IEC 950/EN 60950
Security algorithms
802.1x RADIUS HTTPS SSH SSL/TLS
SFP ports quantity
40
SFP+ ports quantity
2
SSH/SSL support
Y
Stackable
Y
Static port security
Y
Storage temperature range (T-T)
-20 - 70
Supported network protocols
iPv4/iPv6
Switch Type
Managed
Transfer rate (Mbps)
10000
Ventilation fan(s)
3
VLAN support
Y
Web-based management
Y
Width
432
