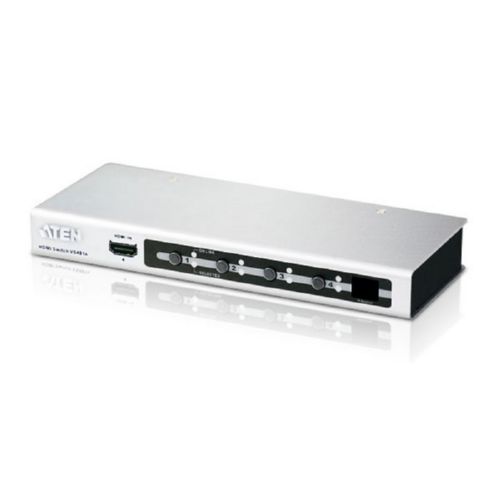

Aten VS481A video switch

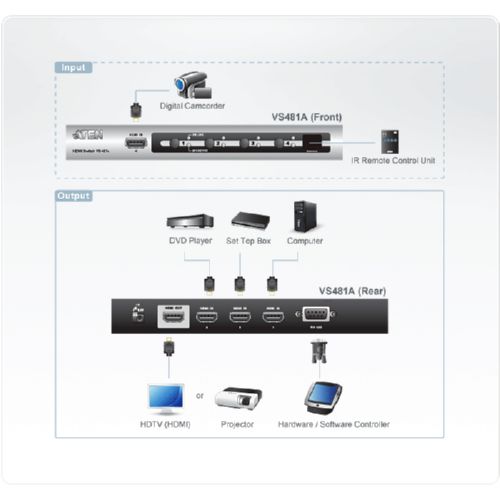

The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players Satelite receivers Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch. Features:


• Allows up to four HDMI A/V source to be connected to one HDMI display

• Toggle between A/V sources using remote control or front panel pushbuttons

• Supports high-resolution video - HDTV resolutions of 480p 720p 1080i 1080p (1920x1080); VGA SVGA SXGA
UXGA (1600x1200) and WUXGA(1920x1200)

• Supports 12-bit Deep Color for HDMI formats

• Supports Dolby True HD and DTS HD Master Audio

• Up to 60 Hz refresh rate

• Long distance transmission - up to 20m (24 AWG) and 15m (28 AWG)

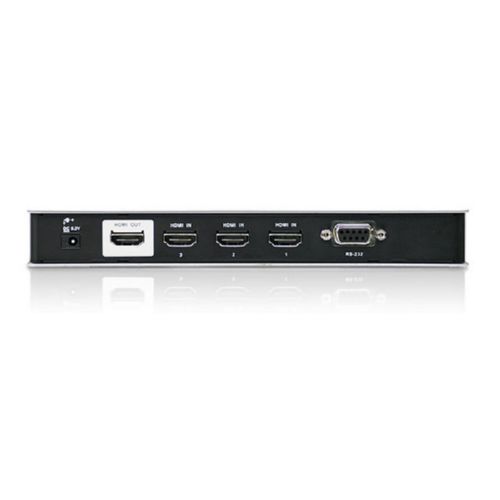

• Built-in bi-directional RS-232 serial remote port for high-end system control

• Plug-and-play - no software installation required

• DDC Compatible

• HDMI 1.3b compliant

• HDCP 1.1 compliant

• Supports HDMI Type A 19-pin female connector

• Signaling rates up to 2.25 Gbits in support of 1080p display

• All-metal casing

• LED indication of video source devices

• Easy and affordable way to add four HDMI inputs to your home theater system
