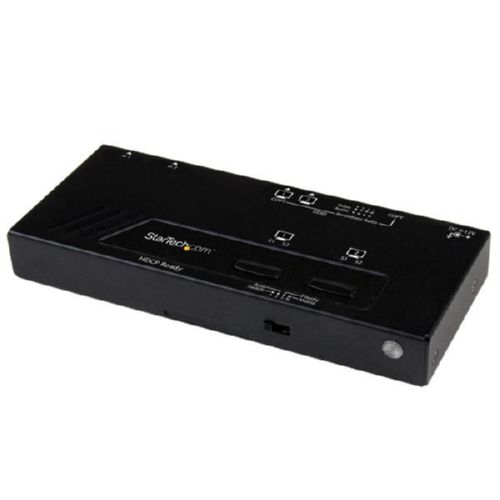

StarTech.com VS222HDQ video switch
StarTech.com VS222HDQ. Dimensions (WxDxH): 2.56 x 6.18 x 0.787" (65 x 157 x 20 mm) Weight: 10.2 oz (290g) Package weight: 19.2 oz (545g). AC adapter input voltage: 100 - 240V AC adapter input current: 0.6A AC adapter output voltage: 12V. Certification: CE FCC
| $148.06 |
Manufacturer:
STARTECH.COM
Item:
VS222HDQ
Our Part #
VS222HDQ
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $7.40 |
$148.06EA
Availability
In Stock
Product description
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality
Save time and hassle by automatically switching between your HDMI audio/video sources using the VS222HDQ 2X2 HDMI Matrix Switcher.�This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources with EDID copy�maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources with EDID copy�maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control

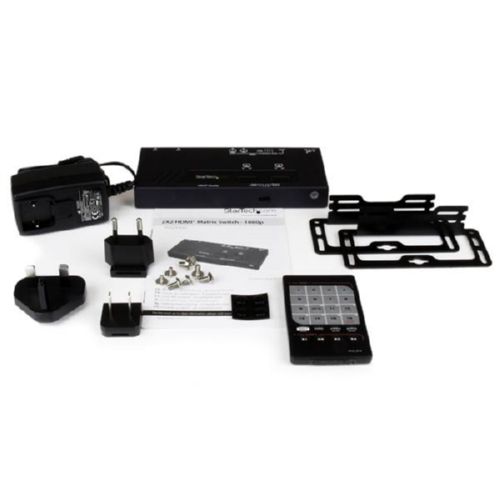

Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection:�Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection:�Independently switch two displays between two video sources.

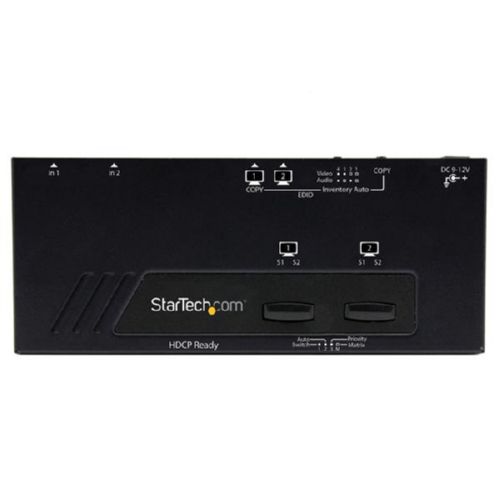

Manual port selection:�Enables you to manually select your HDMI source with easy-to-use front panel buttons.
The StarTech.com Advantage
- Save your time by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
- Hassle-free operation with four video selection modes including automatic priority matrix and manual
- Worry-free switching with EDID copy video and connection emulation ensuring no signal loss
Specifications
AC adapter bundled
Y
AC adapter input current
0.6
AC adapter input voltage
100 - 240
AC adapter output current
1.5
AC adapter output voltage
12
Audio output channels
7.1
Audio support
Y
Certification
CE FCC
Color of product
Black
Dimensions (WxDxH)
65 x 157 x 20
Full HD
Y
Handheld remote control
Y
HDCP
Y
HDMI in
2
HDMI out
2
HDMI ports quantity
4
LED indicators
Activity
Manual
Y
Material
Aluminium Plastic
Maximum operating distance
10
Operating relative humidity range
0 - 80
Operating temperature range (T-T)
0 - 40
Package depth
290
Package height
262
Package weight
545
Package width
195
Plug and Play
Y
Rack mounting
Y
RoHS compliance
Y
Storage temperature range (T-T)
-20 - 60
Supported graphics resolutions
1280 x 720 (HD 720) 1920 x 1080 (HD 1080) 1920 x 1200 (WUXGA)
Supported video modes
1080p 720p
Video port type
HDMI
Weight
290
