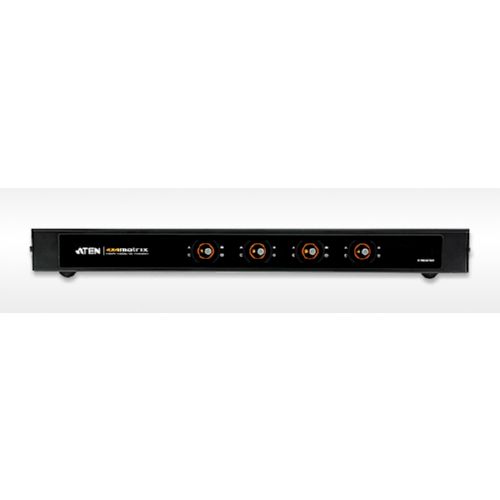

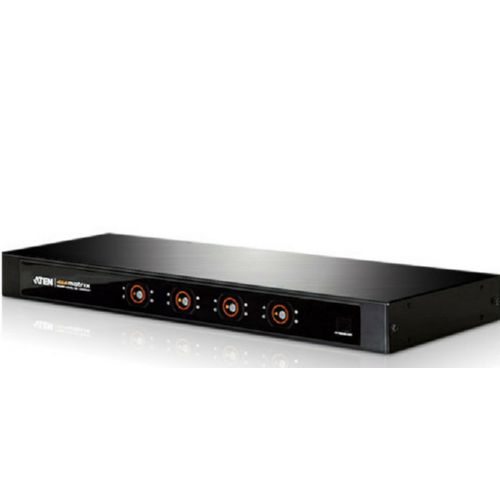

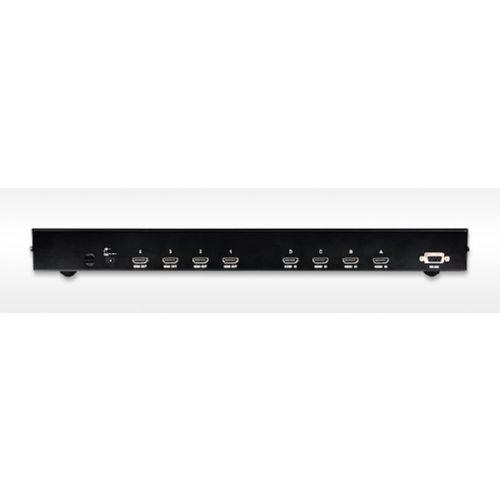

Aten VM0404H video switch

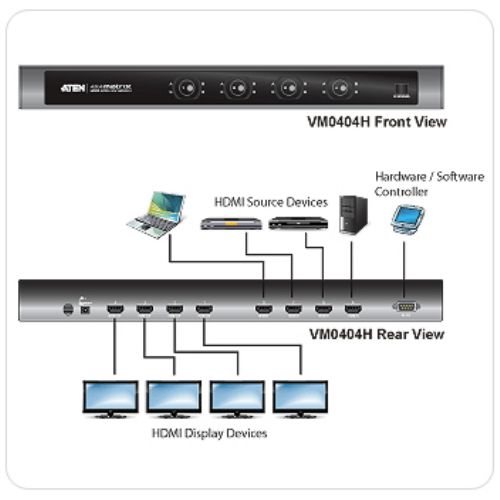

The VM0404H is a 4x4 HDMI Matrix Switch that provides a convenient way to route high definition video and audio from any of four HDMI sources to any of four HDMI displays. The VM0404H allows you to connect four HDMI devices (such as an HD camcorder or satellite box HD-DVD player hi-def Blu-ray player home theatre PC stand-alone streaming media player or gaming console) to four HDMI monitors displays projectors or TVs at the same time. The remote control and convenient front panel pushbuttons allow you to quickly and easily cycle through HDMI sources and displays while the front panel LEDs indicate the source device for each display at a glance.
• Connects any of four HDMI sources to any of four HDMI displays

• Toggle between HDMI sources and displays using remote control or front panel pushbuttons

• Cascade via other VM0404Hs to provide up to 64 HDMI sources/displays for digital signage systems

• Supports high-resolution video: HDTV resolutions of 480p 720p1080i 1080p (1920x1080); VGA SVGA SXGA UXGA (1600x1200) and WUXGA (1920 x 1200)

• HDMI 1.3b and HDCP 1.1 compliant

• HDMI CEC Compliant

• Supports 12-bit Deep Color for HDMI formats

• Supports Dolby True HD and DTS HD Master Audio

• Up to 60 Hz refresh rate

• Long-distance transmission: up to 20 m (24 AWG) and 15 m (28 AWG)

• Built-in bi-directional RS-232 serial remote port for high-end system control

• Power On Detection: if one HDMI source is powered off the VM0404H will automatically switch to the next powered-on source

• DDC compatible

• Signaling rates up to 2.25 Gbits in support of 1080p display

• All-metal casing

• Easy and affordable way to add four HDMI inputs to your multiscreen home theatre system

• Rack Mountable
