StarTech.com USB3SMDOCKHV
StarTech.com USB3SMDOCKHV. Wireless technologies: Cable Host interface: USB 3.0 USB connector type: USB A. Ethernet LAN data rates: 10 100 1000 Mbit/s Network standard: IEEE 802.3 IEEE 802.3ab IEEE 802.3u. Data transfer rate: 5 Gbit/s Maximum analog resolution: 2048 x 1152 pixels Maximum digital resolution: 2048 x 1152 pixels. Color of product: Black LED indicators: Activity Link Material: Plastic. Width: 4.92" (12.5 cm) Depth: 2.17" (5.5 cm) Height: 0.669" (1.7 cm)
| $120.64 |
Manufacturer:
STARTECH.COM
Item:
USB3SMDOCKHV
Our Part #
USB3SMDOCKHV
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $6.03 |
$120.64EA
Availability
In Stock
Product description

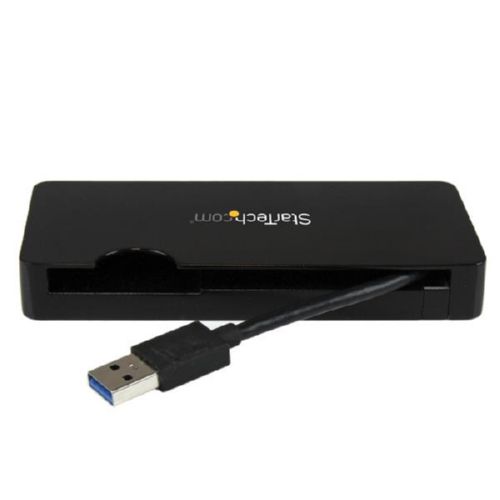

Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock

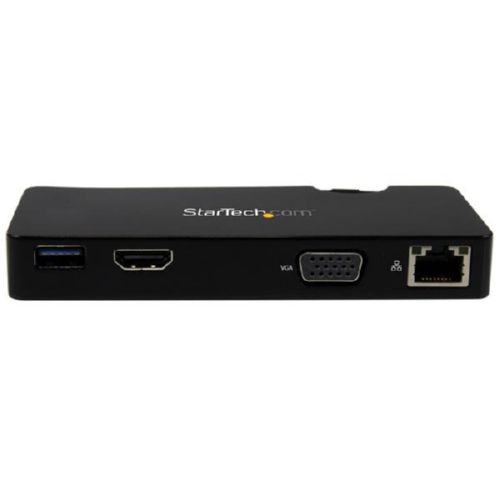

The USB3SMDOCKHV USB 3.0 Laptop Mini Docking Station lets you transform your Ultrabook or laptop into a mobile workstation by adding HDMI or VGA video output a USB 3.0 hub port and a Gigabit Ethernet RJ45 port all through a single USB 3.0 host connection � a travel-friendly solution that can help you overcome the connection port limitations of modern mobile computers.
Now you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device the USB3SMDOCKHV delivers the perfect laptop accessory. The mini docking station features a lightweight compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing.
A versatile solution for connecting an additional display to your laptop the mini dock offers HDMI video output with audio or VGA video output providing two popular interfaces for connecting a television projector or monitor as a second display with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5 Gbps) USB 3.0 interface to deliver flexible video output a USB 3.0 hub port and Gigabit Ethernet you can quickly set up a multi-functional workstation while on�the�run without sacrificing one of your laptop USB ports.
Setup is seamless and hassle-free; the mini docking station will automatically download the latest driver when connected to a Windows�system with an active network connection.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Consolidates several connection ports into a single multi-function adapter including flexible HDMI or VGA output plus a USB 3.0 and Gigabit Ethernet port
- Portable and travel-friendly design that lets you take the adapter anywhere with a built-in cable and no external power required
- Fast hassle-free setup. Latest drivers are automatically downloaded in Windows systems when an active network connection is present
Specifications
Auto MDI/MDI-X
Y
Card reader integrated
N
Certification
CE FCC
Chipset
DisplayLink - DL-3700
Color of product
Black
Data transfer rate
5
Depth
55
Ethernet LAN (RJ-45) ports quantity
1
Ethernet LAN connection
Y
Ethernet LAN data rates
10 100 1000
Full duplex
Y
HDMI ports quantity
1
Height
17
Host interface
USB 3.0
LED indicators
Activity Link
Manual
Y
Material
Plastic
Maximum analog resolution
2048 x 1152
Maximum digital resolution
2048 x 1152
Microphone in
N
Network standard
IEEE 802.3 IEEE 802.3ab IEEE 802.3u
Operating relative humidity range
0 - 90
Operating temperature range (T-T)
0 - 40
Package depth
165
Package height
40
Package weight
190
Package width
140
RoHS compliance
Y
Storage temperature range (T-T)
-20 - 70
UASP support
Y
USB 3.0 ports quantity
1
USB connector type
USB A
VGA (D-Sub) ports quantity
1
Weight
80
Width
125
Wireless technologies
Cable
