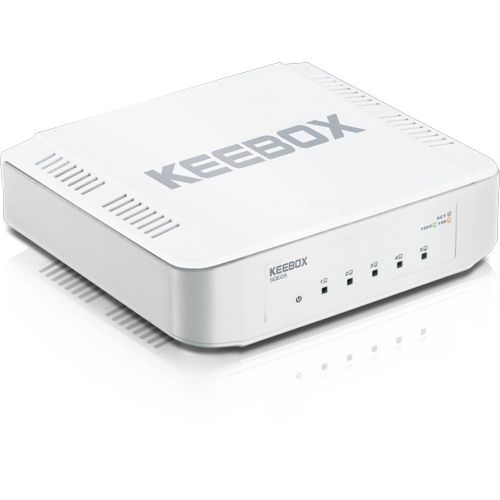

KEEBOX SGE05 Network Switch
KEEBOX SGE05. Switch type: Unmanaged. Network standard: IEEE 802.3 IEEE 802.3ab IEEE 802.3u IEEE 802.3x. MAC address table: 2000 entries Supported data transfer rates: 10/100/1000Mbps Switching capacity: 10 Gbit/s. Color of product: White LED indicators: Activity Link Power. Packet buffer memory: 0.125 MB
| $28.35 |
Manufacturer:
KEEBOX
Item:
SGE05
Our Part #
SGE05
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $1.42 |
$28.35EA
Availability
In Stock
Product description
- 5 high speed Gigabit ports
- Full-Duplex Mode delivers 2Gbps per port
- Share content between computers storage devices printers and other Ethernet enabled devices fast
- Auto-Sensing technology automatically optimizes each connection
- No driver installation required
Features
- 5 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet Ports
- Compliant with IEEE 802.3/IEEE 802.3u/IEEE 802.3ab standards
- IEEE 802.3x Flow Control for full-duplex mode
- Store-and-Forward switching architecture with
- non-blocking wire-speed performance
- Back pressure Flow Control for half-duplex mode
- 2K MAC address table
- 1024Kbits RAM data buffering
- Operates and maximizes packet filtering and forwarding rate
- Compliant with Windows Linux and Mac Operating Systems
- Jumbo Frame support up to 9K

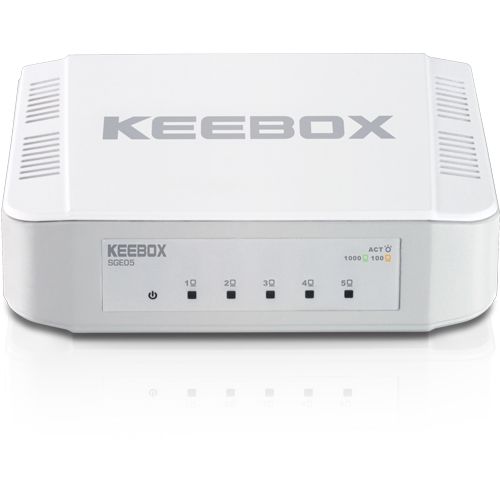

- LEDs indicate port activity and connection speed
- Easy Plug and Play installation
Specifications
Basic switching RJ-45 Ethernet ports quantity
5
Color of product
White
Depth
102
Energy Star certified
N
Flow control support
Y
Full duplex
Y
Height
30
Jumbo Frames support
Y
LED indicators
Activity Link Power
MAC address table
2000
Maximum data transfer rate
1
Network standard
IEEE 802.3 IEEE 802.3ab IEEE 802.3u IEEE 802.3x
Operating relative humidity range
0 - 90
Operating temperature range (T-T)
0 - 40
Packet buffer memory
0.125
Power consumption (typical)
6.6
Power LED
Y
Power over Ethernet (PoE) support
N
Rack mounting
N
Stackable
N
Storage temperature range (T-T)
-10 - 70
Store-and-forward
Y
Supported data transfer rates
10/100/1000Mbps
Switch Type
Unmanaged
Switching capacity
10
Weight
160
Width
115
