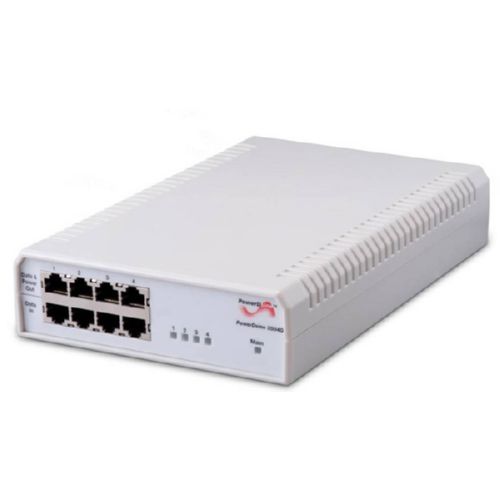

Microsemi PowerDsine PoE 4-Port Gig Midspan-802.3AF 4Port Small Footprint POE mi
Microsemi PowerDsine PoE 4-Port Gig Midspan-802.3AF 4Port Small Footprint POE mi. Cabling technology: 10/100/1000 Mbps Power over Ethernet (PoE): 55V. Dimensions (WxDxH): 5.83 x 1.69 x 8.82" (148 x 43 x 224 mm) Weight: 21.9 oz (620g). Certification: FCC Part 15 Class B EN 55022 Class B EN 55024 VCCI RoHS WEEE CE. I/O ports: RJ-45 EIA 568A 568B
| $174.99 |
Manufacturer:
MICROSEMI POE
Item:
PD-3504G/AC
Our Part #
PD-3504G/AC
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $8.75 |
$174.99EA
Availability
In Stock
Product description
PowerDsine 3504G offers a cost effective fully IEEE 802.3af compliant solution to upgrade existing infrastructure with PoE providing a maximum of 15.4 Watts of power through each port and ensuring safe operation of any standard PoE data terminal. It allows IP telephones wireless LAN access points security network cameras and IP terminals to receive power along with data over standard Ethernet cables leaving network infrastructure completely unaltered.
Features
- A cost-effective solution to upgrade existing infrastructure to PoE
- Fully IEEE802.3af standard compliant
- IEEE 802.3af backward compatible
- Supports 10/100/1000Mbps data rates
- Safe & reliable power over existing Ethernet infrastructure
- Provides up to 15.4W per port for all ports
- 3 units can fit in 1U 19" rack
- Cisco and legacy PoE support
Specifications
Cabling technology
10/100/1000 Mbps
Certification
FCC Part 15 Class B
EN 55022 Class B
EN 55024
VCCI
RoHS
WEEE
CE
EN 55022 Class B
EN 55024
VCCI
RoHS
WEEE
CE
Compliance industry standards
IEEE 802.3af
Dimensions (WxDxH)
148 x 43 x 224
Ethernet LAN (RJ-45) ports quantity
4
I/O ports
RJ-45 EIA 568A 568B
Input current
1.0
Input frequency
50 - 60
Input voltage
80 - 264
LED indicators
Y
Operating altitude
0 - 3048
Operating temperature range (T-T)
0 - 40
Power availability
61.6
Power over Ethernet (PoE)
55
Safety
UL/cUL Per EN 60950-1 GS Mark Per EN 60950-1
Storage temperature range (T-T)
-20 - 70
Weight
620
