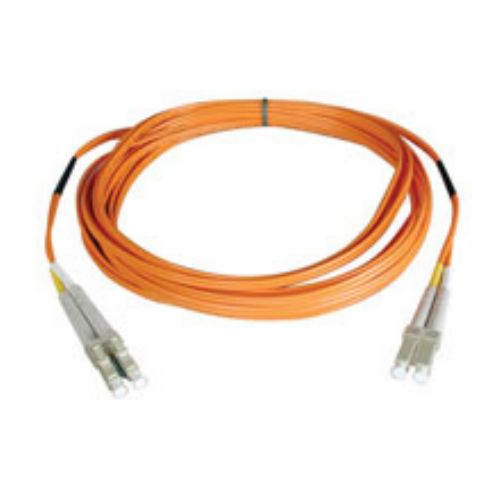

Tripp Lite N520-06M Fiber Optic Cable

Tripp Lite's 7-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables search "N516-" and for SC-SC search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

- Constructed with 50/125 micron cable.
- Use on fiber and fibre channel installations.
- LC male to LC male connectors.
- Higher bandwidth optimized for gigabit and 10Gbps networks.
- Backward compatible with 62.5 micron fiber.
- Built-in headroom for future applications.
- Number of fibers: 2.
- Fiber type: All glass graded index.
- Core diameter: Two 50+/-3 microns.
- CLAD diameter: 125+/-2 microns.
- Primary coating diameter: 245+/-15 microns.
- Primary coating material: Acrylate.
- Secondary coating diameter: 900+/-50 microns.
- Secondary coating material: PVC.
- Attenuation 850NM: 3.5DB/KM maximum 1300NM: 1.0DB/KM maximum.
- Bandwidth 850NM: 220 MHz-KM minimum 1300NM: 600 MHz-KM minimum.
- Numeric apeture: .275 nominal.
- Proof test level: 100000 PSI.
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable.
- Beveled edge on ends of glass makes insertion of plug a breeze.
- Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
