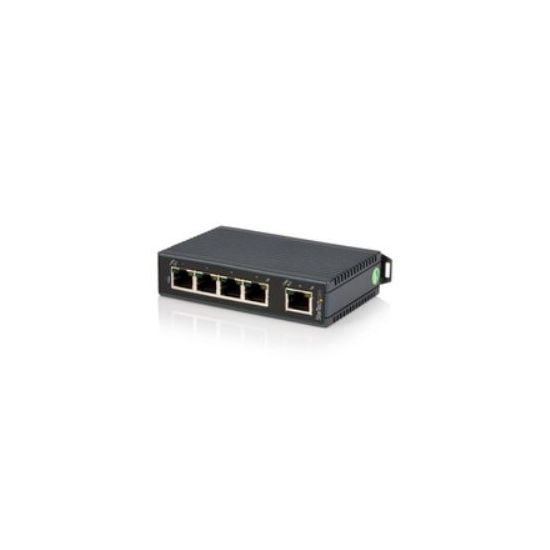

StarTech.com IES5102 Network Switch
StarTech.com IES5102. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Network standard: IEEE 802.1p IEEE 802.3 IEEE 802.3az IEEE 802.3u. Color of product: Black LED indicators: Activity Link Power Housing material: Plastic. Maximum cable length: 3937" (100m) Buffer size: 56 KB Transfer rate (Mbps): 200 Mbit/s
| $121.86 |
Manufacturer:
STARTECH.COM
Item:
IES5102
Our Part #
IES5102
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $6.09 |
$121.86EA
Availability
In Stock
Product description
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
This compact 5-port industrial Ethernet switch is engineered to deliver fast reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required based on your own power input source while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption the Ethernet switch enhances your energy efficiency in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices even in industrial settings with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
Specifications
10G support
N
Auto MDI/MDI-X
Y
Auto-negotiation
Y
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Buffer size
56
Certification
CE FCC
Color of product
Black
Depth
70
Full duplex
Y
Height
110
Housing material
Plastic
Input voltage
12 - 48
International Protection (IP) code
IP30
Jumbo Frames support
N
LED indicators
Activity Link Power
Manual
Y
Maximum cable length
100
Mean time between failures (MTBF)
1179133
Network standard
IEEE 802.1p IEEE 802.3 IEEE 802.3az IEEE 802.3u
Operating relative humidity range
5 - 95
Operating temperature range (T-T)
-10 - 60
Package depth
196
Package height
79
Package weight
335
Package width
177
Power consumption (max)
2.12
Quality of Service (QoS) support
Y
Rack mounting
Y
Regulatory Approvals
EN61000-6-2 EN61000-6-4 EN61000-4-3 EN61000-4-4 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea
Storage temperature range (T-T)
-25 - 85
Store-and-forward
Y
Switch Type
Unmanaged
Terminal block included
Y
Transfer rate (Mbps)
200
Weight
148
Width
25
