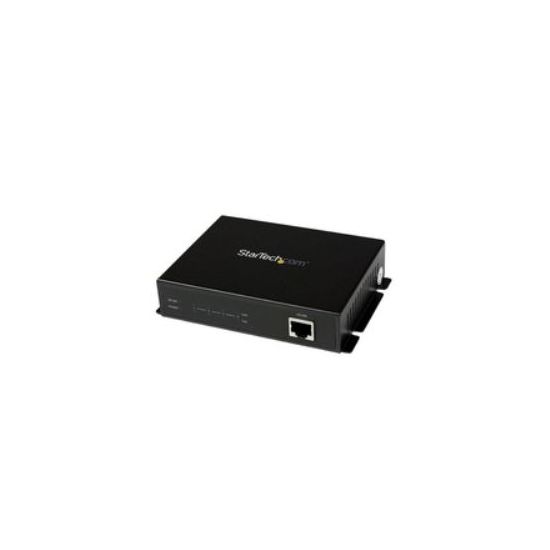

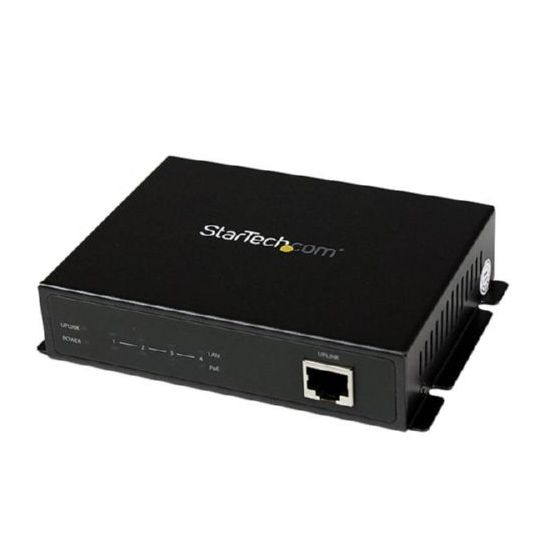

StarTech.com IES51000POE Network Switch
StarTech.com IES51000POE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Copper ethernet cabling technology: 1000BASE-TX 100BASE-TX 10BASE-T. Network standard: IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3u IEEE 802.3x. Switching capacity: 2 Gbit/s. Fiber ethernet cabling technology: 100BASE-FX
| $311.04 |
Manufacturer:
STARTECH.COM
Item:
IES51000POE
Our Part #
IES51000POE
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $15.55 |
$311.04EA
Availability
In Stock
Product description
Connect Gigabit Ethernet and power to 4 PoE-enabled devices with 15.4W per-port output

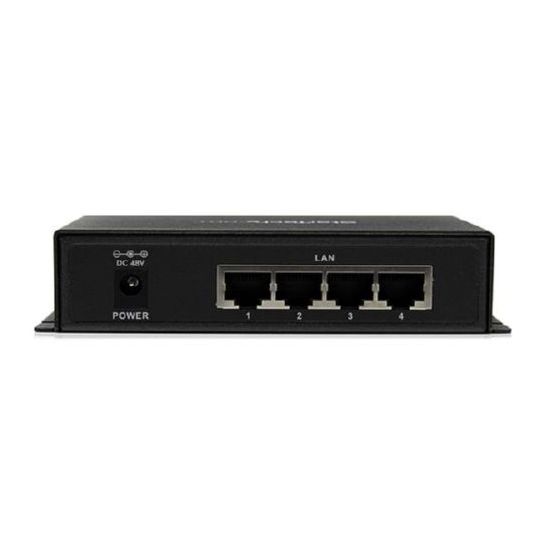

The IES51000POE 5-Port Gigabit PoE Switch with 4 PSE ports lets you connect Gigabit Ethernet and power to up to 4 PoE-enabled devices or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available this compact Power over Ethernet switch complies with IEEE 802.3af standards and supplies up to 15.4 W per port with a total power budget of 62W. A true unmanaged switching solution the 4 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only while all 5 ports auto-negotiate between 10/100/1000 Mbps network speed and duplex.

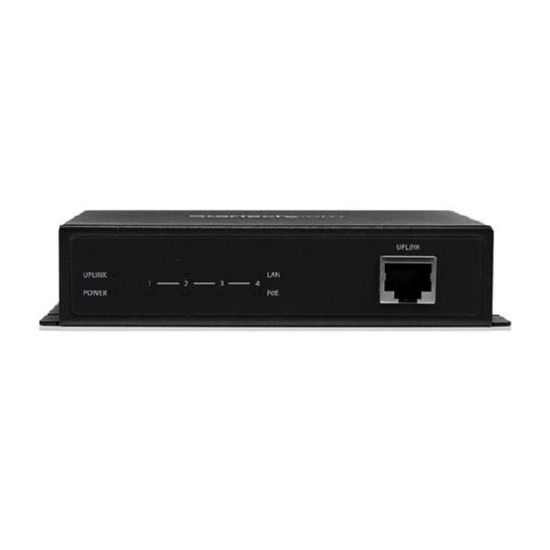

The Gigabit Ethernet switch features a sturdy wall-mountable metal enclosure for durability and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Power your devices without running electrical wiring with a full 15.4 W power per port
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
Specifications
10G support
N
AC input voltage
100-240
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
AC
Color of product
Black
Copper ethernet cabling technology
1000BASE-TX 100BASE-TX 10BASE-T
DC-in jack
Y
Depth
130
Fiber ethernet cabling technology
100BASE-FX
Full duplex
Y
Gigabit Ethernet (copper) ports quantity
5
Height
28
Housing material
Steel
Input current
2
LED indicators
Y
Manual
Y
Network standard
IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3u IEEE 802.3x
Number of power supplies
1
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 50
Output power
64.8
Package depth
235
Package height
78
Package weight
1300
Package width
145
Power LED
Y
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) support
Y
Rack mounting
N
Storage temperature range (T-T)
0 - 50
Store-and-forward
Y
Switch Type
Unmanaged
Switching capacity
2
Weight
366
Width
90
