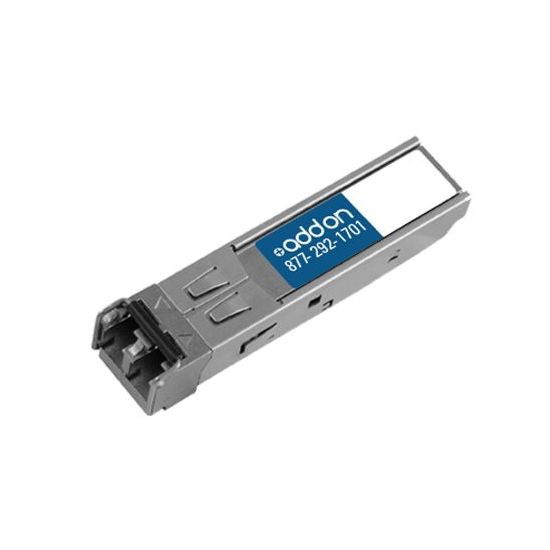

Add-On Computer Peripherals (ACP) 1000BASE-SX SFP
Add-On Computer Peripherals (ACP) 1000BASE-SX SFP. Interface type: SFP Transfer rate (Mbps): 1000 Mbit/s Fiber optic connector: LC. Cable type: Multi-mode Fiber cable diameters supported: 50/125 62.5/125 �m. Input voltage: 3.3V. Width: 0.528" (1.34 cm) Depth: 2.22" (5.65 cm) Height: 0.335" (8.5 mm). Certification: MSA
| $77.50 |
Manufacturer:
ADDON
Item:
E1MG-SX-OM-AO
Our Part #
E1MG-SX-OM-AO
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $3.88 |
$77.50EA
Availability
In Stock
Product description
Add-On's Small Form Factor Pluggable (SFP) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.
All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant
Specifications
Auto MDI/MDI-X
Y
Cable type
Multi-mode
Cabling technology
1000BASE-SX
Certification
MSA
Depth
56.5
Fiber cable diameters supported
50/125 62.5/125
Fiber optic connector
LC
Height
8.5
Hot-Plug support
Y
Input voltage
3.3
Interface type
SFP
Network standard
IEEE 802.3z
Operating relative humidity range
10 - 80
Operating temperature range (T-T)
0 - 70
RoHS compliance
Y
SFP transceiver type
SX
Storage relative humidity range
10 - 85
Storage temperature range (T-T)
-40 - 85
Transfer rate (Mbps)
1000
Width
13.4
