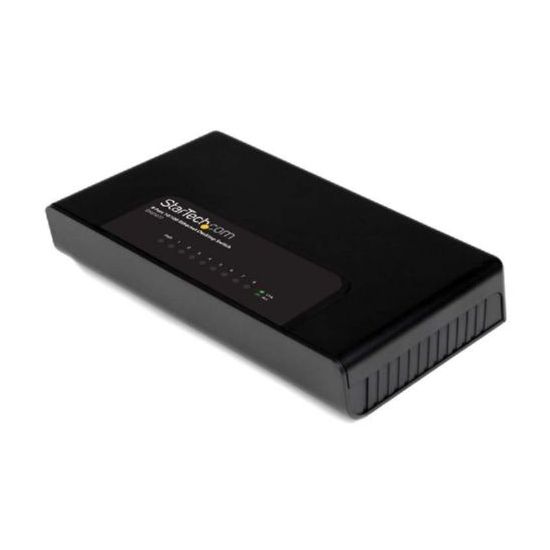

StarTech.com DS81072 Network Switch
StarTech.com DS81072. Copper ethernet cabling technology: 100BASE-TX 10BASE-T. Network standard: IEEE 802.3 IEEE 802.3u. Supported data transfer rates: 10/100 Mbps Maximum data transfer rate: 0.1 Gbit/s. Supported network protocols: CSMA/CD. Color of product: Black LED indicators: Link Power Housing material: Plastic
| $20.93 |
Manufacturer:
STARTECH.COM
Item:
DS81072
Our Part #
DS81072
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $1.05 |
$20.93EA
Availability
In Stock
Product description
Connect and network up to 8 Ethernet devices through a single 10/100 Mbps desktop switch
The DS81072 8-Port Ethernet Network Switch enables up to 8 users to share files and devices (e.g. printers scanners) over a LAN connection by expanding an existing network's capacity with additional ports.
Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks this Fast Ethernet switch can automatically detect the type of network (auto- negotiation) as well as the type of cable (auto MDIX) and configure itself making for an easy to install Plug-and-Play networking solution.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This 8-port Ethernet switch automatically detects and configures for network speed duplex and cable type on each port for a Plug-and-Play installation and setup
- The switch features easily-accessed top-mounted LED indicators and can be wall-mounted or placed on a desktop
- The network switch uses a simple fanless design for quiet and energy-efficient operation
Specifications
10G support
N
AC input voltage
110-240
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
8
Certification
CE FCC RoHS
Color of product
Black
Copper ethernet cabling technology
100BASE-TX 10BASE-T
DC-in jack
Y
Depth
140.4
Ethernet interface type
Fast
Ethernet LAN connection
Y
Ethernet LAN data rates
10 100
Flow control support
Y
Full duplex
Y
Height
28
Housing material
Plastic
LED indicators
Link Power
MAC address filtering
Y
Manual
Y
Maximum data transfer rate
0.1
Network standard
IEEE 802.3 IEEE 802.3u
Networking features
Fast Ethernet
Number of power supplies
1
Operating temperature range (T-T)
0 - 40
Package depth
204
Package height
65
Package weight
347
Package width
165
Power LED
Y
Power supply type
9V DC 0.6A
Rack mounting
N
Relative humidity
10 - 90
Storage temperature range (T-T)
-40 - 70
Store-and-forward
Y
Supported data transfer rates
10/100 Mbps
Supported network protocols
CSMA/CD
Weight
155
Width
89.1
Wireless technologies
Wired
