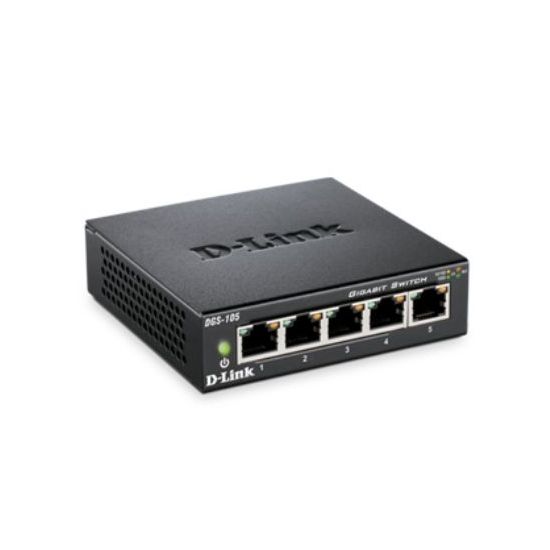

D-Link DGS-105 Network Switch

D-Link DGS-105. Switch type: Unmanaged. Copper ethernet cabling technology: 1000BASE-T 100BASE-TX 10BASE-T. Network standard: IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3az IEEE 802.3u IEEE 802.3x. MAC address table: 2000 entries Supported data transfer rates: 10/100/1000 Mbps Switching capacity: 10 Gbit/s. Color of product: Black LED indicators: Link Power Yes Housing material: Metal
$46.50
Manufacturer:
D-LINK
Item:
DGS-105
Our Part #
DGS-105
Condition
New
Extended Warrenty
1 Year Extended Warrenty$2.33
$46.50EA
Availability In Stock
Great Deals Everyday

You may be also interested

Product description

Effortless High Speed Networking

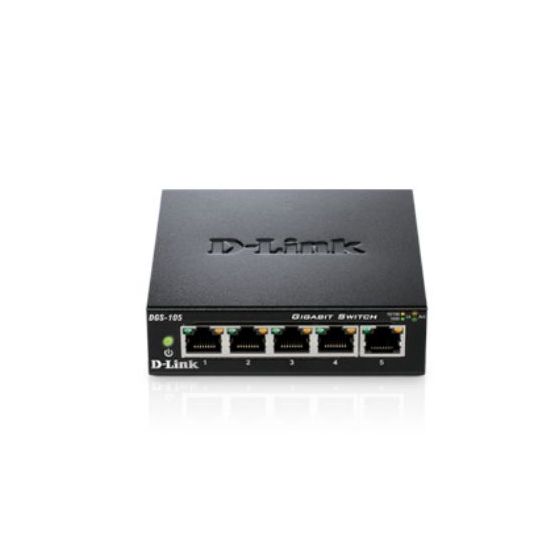

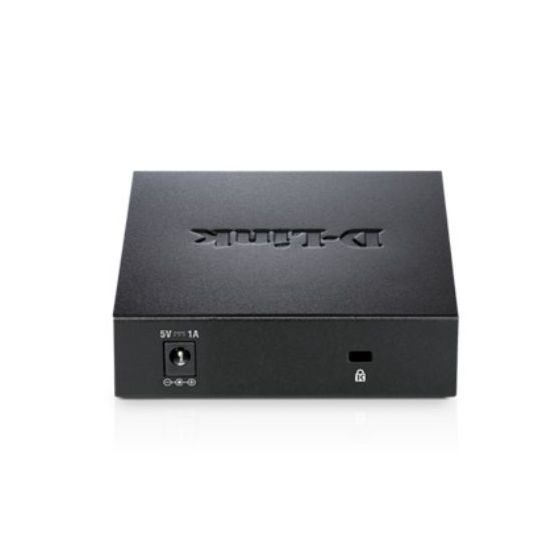

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet the D-Link DGS-105 5 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with bi-color LED indicators per port to quickly distinguish link status. The switch features IEEE 802.1p QoS which organizes and prioritizes time-sensitive and important data for efficient delivery allowing for smooth streaming media VoIP calling and online gaming. Additionally the switch features a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.

Think Green
The DGS-105 is a plug-and-play networking switch that offers D-Link�s Green Technology to save energy and reduce heat which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic at which time the switch will automatically power down the idle port saving a substantial amount of power. In addition the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these innovative features drastically reduce power consumption and heat dissipation resulting in extended life and substantial cost savings.

Environmentally Friendly
The DGS-105 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V CEC and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Specifications

Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
5
Certification
FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB RoHS
Color of product
Black
Copper ethernet cabling technology
1000BASE-T 100BASE-TX 10BASE-T
Data transfer rate
2000
DC-in jack
Y
Dimensions (WxDxH)
100 x 98 x 28
Flow control support
Y
Full duplex
Y
Heat dissipation
6.854
Housing material
Metal
Input current
1
Input voltage
5
Jumbo Frames support
Y
LED indicators
Link Power Y
MAC address filtering
Y
MAC address table
2000
Maximum data transfer rate
1
Mean time between failures (MTBF)
1688338
Network standard
IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3az IEEE 802.3u IEEE 802.3x
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 50
Packet buffer memory
0.128
Power consumption (typical)
3.10
Quality of Service (QoS) support
Y
Rack mounting
N
Storage relative humidity range
5 - 90
Storage temperature range (T-T)
10 - 70
Store-and-forward
Y
Supported data transfer rates
10/100/1000 Mbps
Switch Type
Unmanaged
Switching capacity
10
Weight
286
Wireless technologies
Wired
