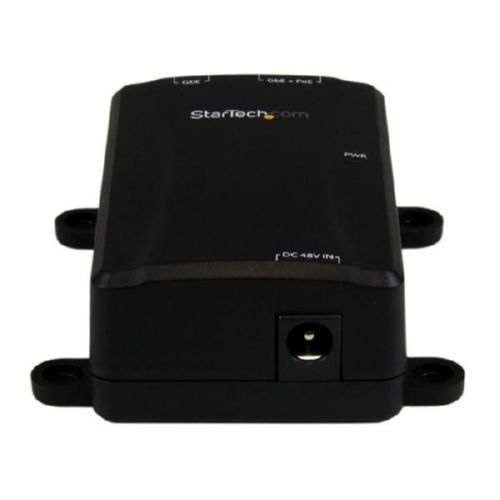

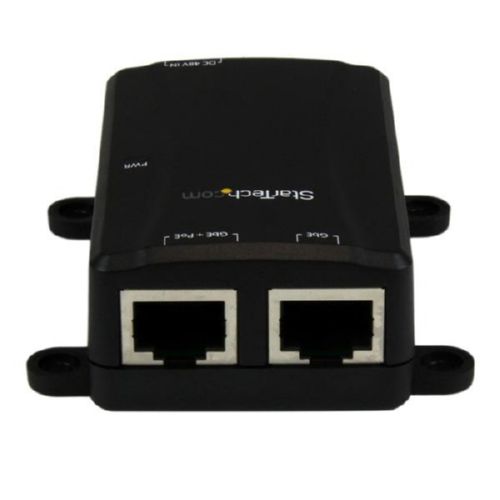

StarTech.com POEINJ1G PoE Adapter & Injector
StarTech.com POEINJ1G. Cabling technology: 10Base-T 100Base-TX 1000Base-T Power over Ethernet (PoE): 48V. Dimensions (WxDxH): 2.48 x 2.76 x 0.984" (63 x 70 x 25 mm) Weight: 1.83 oz (52g). Certification: RoHS
| $86.18 |
Manufacturer:
STARTECH.COM
Item:
POEINJ1G
Our Part #
POEINJ1G
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $4.31 |
$86.18EA
Availability
In Stock
Product description
Supply power and data connectivity to an individual Gigabit PoE device over standard Ethernet cabling
The POEINJ1G 1 Port Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device over standard Ethernet cabling at distances of up to 100m (330ft).
This single-port PoE injector allows you to easily connect an individual PoE-powered device (PD) to a non-PoE LAN switch avoiding the cost of upgrading your switch to a PoE-enabled model. Fully compliant with IEEE 802.3at / 802.3af standards the high-power PoE / PSE adapter provides a 10/100/1000Mbps port with support for up to 48V (30W max) output.
A perfect solution for applications where an electrical outlet may not be available the injector adapter can be used to power PoE-enabled devices such as IP cameras or Wireless Access Points (WAPs). The compact wall-mountable design makes it easy to install the adapter into areas where space is limited and can be installed in seconds with no configuration required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Power devices through PoE where electrical outlets are not available
- Convenient and versatile installation with a compact wall-mountable design
Specifications
Cabling technology
10Base-T 100Base-TX 1000Base-T
Certification
RoHS
Compliance industry standards
IEEE 802.3af IEEE 802.3at IEEE 802.3 IEEE 802.3u IEEE 802.3ab
Dimensions (WxDxH)
63 x 70 x 25
Ethernet interface type
Fast Gigabit
Ethernet LAN (RJ-45) ports quantity
2
Ethernet LAN data rates
10 100 1000
Input current
0.75
Input voltage
100 - 240
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 45
Package height
76
Package width
230
Power over Ethernet (PoE)
48
Power over Ethernet (PoE) support
Y
Storage temperature range (T-T)
-40 - 85
Weight
52
