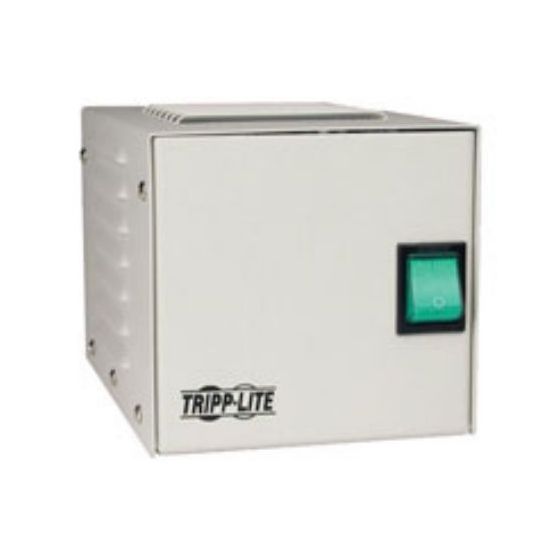

Tripp Lite IS250HG Surge Protector

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1000HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles a 6-ft. power cord hospital-grade input plug circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial medical office or network environment.

- The IS1000HG Medical Grade Isolation Transformer offers line isolation continuous noise filtering and enhanced common mode surge suppression.
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line.
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.
- Secondary neutral to ground bonding eliminates common mode noise providing an isolated ground reference for sensitive equipment.
- Serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades.
- Removes EMI/RFI noise utility switching transients load generated harmonics and ground loops.
- Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes.
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts uniquely able to reduce surges in the worst of power environments to harmless levels.
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode.
- Includes 4 widely spaced NEMA5-15R hospital grade output receptacles a 6-ft power cord hospital grade input plug circuit breaker overload protection and lighted power switch.
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial medical office or network environment.
