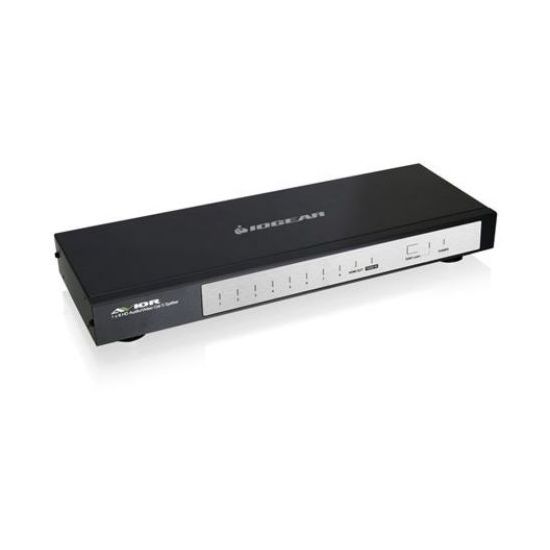

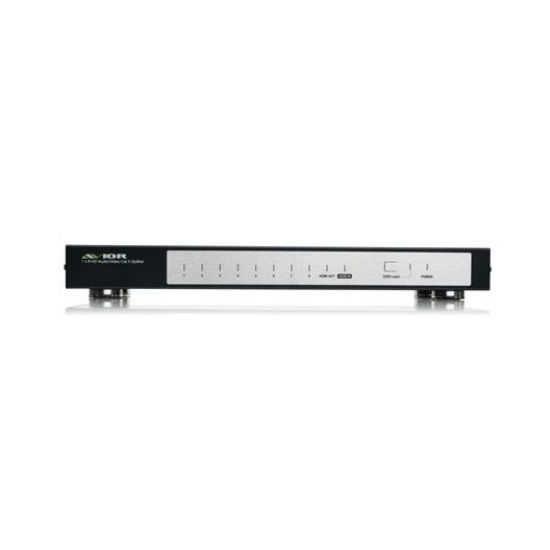

iogear GHSP8218E Video Splitter
iogear GHSP8218E. Video port type: HDMI Connector(s): HDMI A 19 Pin (F). Supported video modes: 1080i 1080p 480i 480p 720p. Color of product: Black. Power consumption (typical): 12W. Dimensions (WxDxH): 17.2 x 6.1 x 2.13" (437.3 x 154.94 x 54.1 mm) Weight: 75.8 oz (2.15 kg)
| $589.81 |
Manufacturer:
Iogear
Item:
GHSP8218E
Our Part #
GHSP8218E
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $29.49 |
$589.81EA
Availability
In Stock
Product description
The AVIOR GHSP8218E is a rack-mountable 8-Port HDMI Audio / Video Cat 5e/6 Splitter that takes high definition audio and video from a single HDMI media source and directs it to 8 separate HD TVs or displays with 3D support via Cat5e/6 receiver; GH8201ER. Being HDCP compliant the unit is able to support the highest quality HD video and multi-channel digital audio; enabling the splitting of HD content from DVR / Set-top boxes Blu-Ray players computers and other HD or non HD devices. The loop-through HDMI OUT Port offers additional flexibility for cascading and local monitor support.
Distribute Full HD 1080p (24 / 60 Hz) or your 3D content with multi-channel digital audio and 12-bit Deep Color.
The GHSP8218E can cascade up to 3 levels supporting up to 512 HDMI signals. Cascading distance from source to device 6ft device to device 50ft and device to display 65ft; makes a total of 121ft through cascade.
Specifications
Color of product
Black
Connector(s)
HDMI A 19 Pin (F)
DC-in jack
Y
Dimensions (WxDxH)
437.3 x 154.94 x 54.1
Material
Metal
Operating relative humidity range
0 - 80
Operating temperature range (T-T)
0 - 50
Power consumption (typical)
12
Power LED
Y
Power requirements
6VDC 2A
Storage temperature range (T-T)
-20 - 60
Supported video modes
1080i 1080p 480i 480p 720p
Video in
1
Video out
8
Video port type
HDMI
Video ports quantity
8
Weight
2150
