Edimax ES-1008P Network Switch
Edimax ES-1008P. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Network standard: IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3x. MAC address table: 1000 entries Throughput: 148.8. Color of product: Black LED indicators: Activity Link Power Certification: FCC CE. Packet buffer memory: 0.96 MB
| $178.27 |
Manufacturer:
EDIMAX COMPUTER COMPANY
Item:
ES-1008P
Our Part #
ES-1008P
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $8.91 |
$178.27EA
Availability
In Stock
Product description
- Complies with IEEE 802.3 802.3u 802.3x 802.3af and 802.3at standards
- Supplies 48V DC with 30W output per port (150W total power budget)
- Automatically detects powered devices (PD) and power consumption levels
- Supports auto fault detection (over/under current & voltage)
- Supports IEEE 802.3az Energy Efficient Ethernet
Description

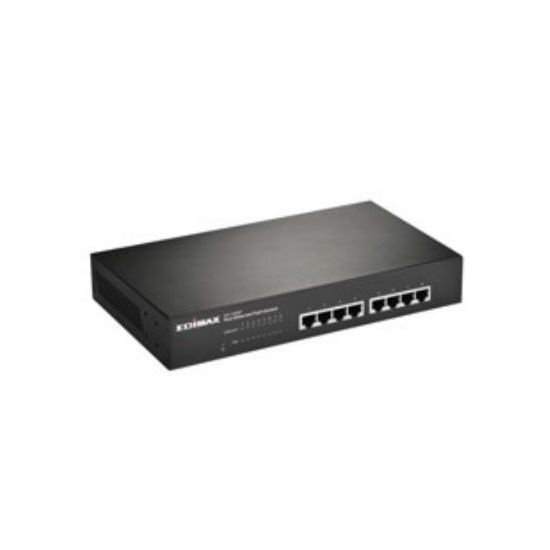

The ES-1008P is an 8-port Fast Ethernet switch with 8 PoE ports designed for use in small or medium sized network environments. The device's compact size makes the ES-1008P ideal for users with limited space.
Complies with IEEE 802.3at Power over Ethernet (PoE)
The ES-1008P features 8 IEEE 802.3at Power over Ethernet (PoE) ports which supply up to 30 watts of power per port. It can convert standard 100-240V AC power into low-voltage DC which runs over existing LAN cables to supply power to IEEE 802.3at compliant network accessories. The ES-1008P also features PoE detection to verify whether the connected device is IEEE 802.3at compliant; if it is not a PoE device only data will be sent through the LAN cable. The ES-1008P can connect with a variety of PoE products including access points IP cameras and IP phones. It is the best solution for when power outlets are difficult to install or the power outlets are too far from the device.
No Special Networking Cable Required
The standard Cat-5 Ethernet cable is used to link the ES-1008P and the powered devices. This Ethernet cable can transmit both data and power. No separate power cable is needed for the powered devices thus reducing installation time and costs.
Specifications
10G support
N
AC input frequency
50/60
AC input voltage
100-240
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Certification
FCC CE
Color of product
Black
DC-in jack
Y
Depth
44.5
Height
179
LED indicators
Activity Link Power
MAC address table
1000
Network standard
IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3x
Operating relative humidity range
10 - 90
Operating temperature range (T-T)
0 - 40
Packet buffer memory
0.96
Power consumption (typical)
5
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) support
Y
Storage temperature range (T-T)
-40 - 70
Throughput
148.8
Total Power over Ethernet (PoE) budget
123.2
Weight
1500
Width
280
